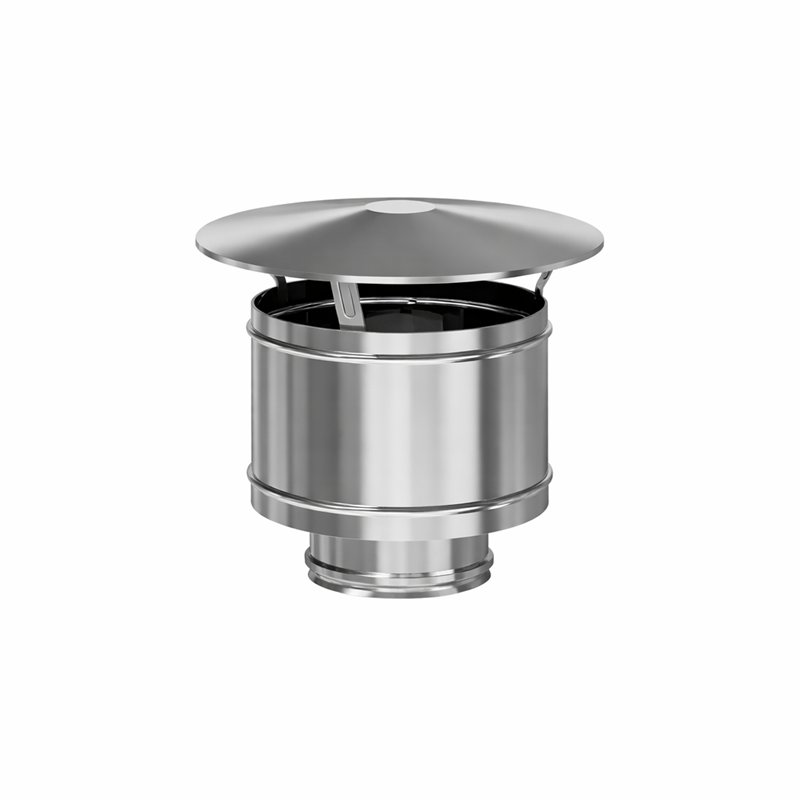

Weatherproof terminal cap I2AP ISO25 INOX Double wall flue
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)
WINDPROOF / ANTI-REFLUX CHINESE HAT
STAINLESS STEEL FLUE - DOUBLE INSULATED WALL
ISO25 STAINLESS STEEL SYSTEM
Iso25 INOX is the double wall flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional or condensation, etc.).
The whole ISO 25 INOX line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years
The Chinese anti-backflow hat is the terminal of the flue with high flow resistance indicated for the discharge of fumes in climatic areas characterized by strong wind and abundant rainfall.
Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel
Cod. | Øi | Øe | H | Øc | |
---|---|---|---|---|---|
Acciaio Inox | I2AP80 | 80 | 130 | 150 | 300 |
Acciaio Inox | I2AP100 | 100 | 150 | 165 | 300 |
Acciaio Inox | I2AP130 | 130 | 180 | 165 | 350 |
Acciaio Inox | I2AP150 | 150 | 200 | 200 | 400 |
Acciaio Inox | I2AP180 | 180 | 230 | 200 | 400 |
Acciaio Inox | I2AP200 | 200 | 250 | 250 | 500 |
Acciaio Inox | I2AP250 | 250 | 300 | 250 | 600 |
Acciaio Inox | I2AP300 | 300 | 350 | 330 | 600 |
Delivery terms: 1 week
Certification: KIWA
Warranty: 10 Years
