Inspection module double wall flue ISO25 De Marinis
  • Inspection module double wall flue ISO25 De Marinis
  • Inspection module double wall flue ISO25 De Marinis

Inspection module double wall flue ISO25 De Marinis

I2IT80
Rating

Inspection module double wall flue ISO25 De Marinis

Diametro
€139.30
€111.44 Save 20%
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description

INSPECTION FORM
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 INOX SYSTEM


Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability.


Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

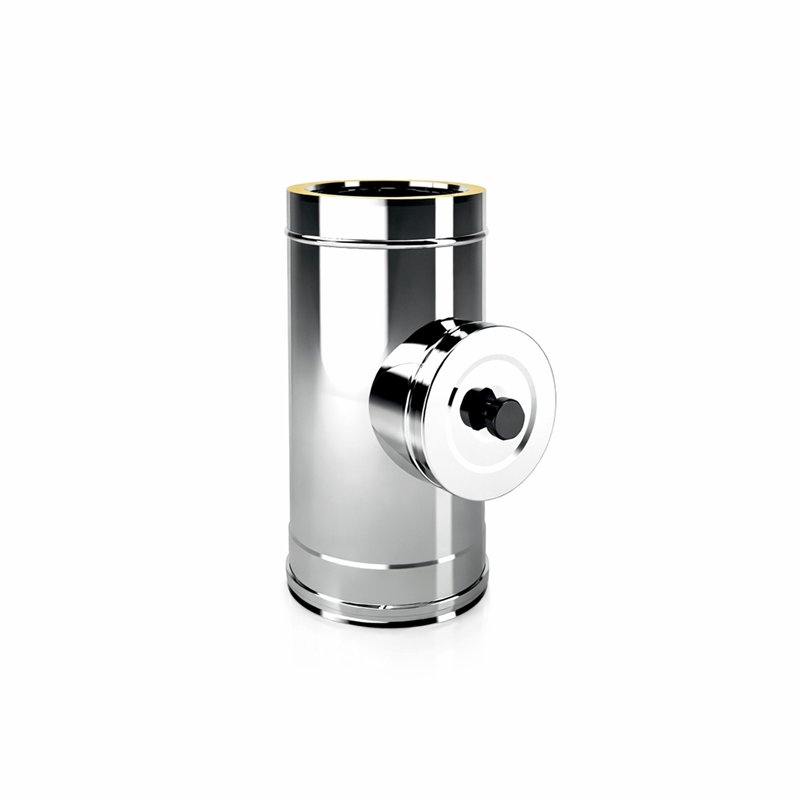

The inspection module, usually installed at the base of the flue, allows periodic inspection of the flue pipe.
Can be used with positive pressures up to 200 Pa and temperatures up to 200 ° C

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel




  Cod. Øi Øe Hu A ØT I
Acciaio Inox I2IT80 80 130 445 245 80 45
Acciaio Inox I2IT100 100 150 445 245 100 45
Acciaio Inox I2IT130 130 180 445 245 130 45
Acciaio Inox I2IT150 150 200 445 245 150 45
Acciaio Inox I2IT180 180 230 445 245 180 45
Acciaio Inox I2IT200 200 250 445 245 200 45
Acciaio Inox I2IT250 250 300 445 245 200 45
Acciaio Inox I2IT300 300 350 445 245 200 45
Acciaio Inox I2IT350 350 400 445 245 200 45
Acciaio Inox I2IT400 400 450 445 245 200 45
Acciaio Inox I2IT450 450 500 445 245 200 45
Acciaio Inox I2IT500 500 550 445 245 200 45


Garanzia: 10 Anni

Termini consegna materiale : 1 settimana

Certificazione : KIWA
