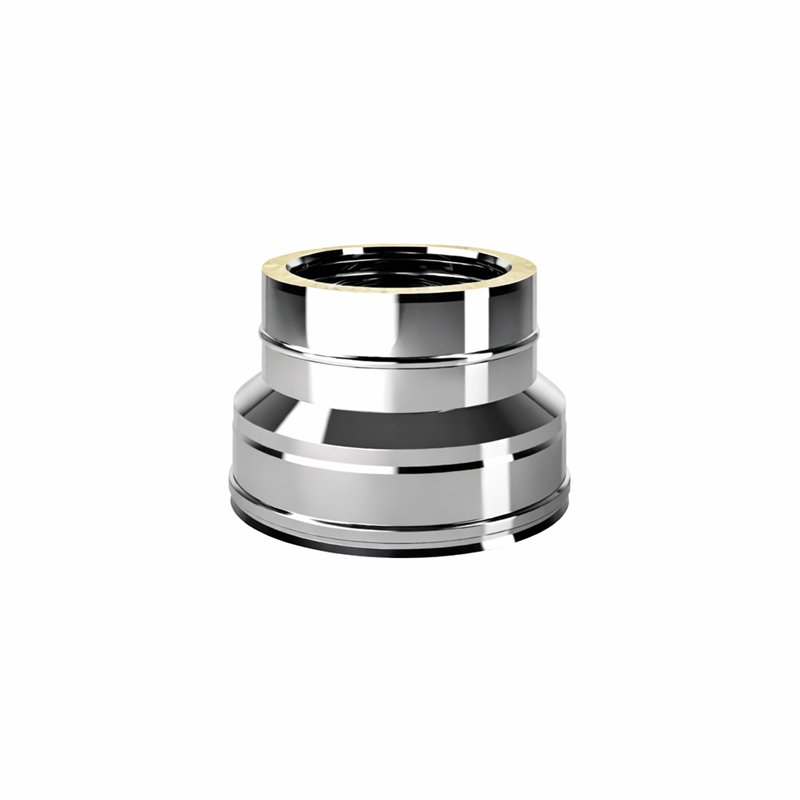

Reduction fitting I2RCDR ISO25 INOX Double wall flue
Reduction fitting I2RCDR ISO25 INOX Double wall flue
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Description
REDUCTION
STAINLESS STEEL CHIMNEY - DOUBLE WALL
ISO25 INOX SYSTEM
Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years
The reduction is a fitting that allows the passage to the smaller measuring diameter
The male part has the smallest diameter and the female part has the largest diameter
Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Aisi 316 stainless steel internal wall - Aisi 304BA stainless steel external wall
| Cod. | Øi1 | Øe1 | Øi2 | Øe2 | Hu | I | |
|---|---|---|---|---|---|---|---|
| Acciaio Inox | I2RCDR100-Øi2 | 100 | 150 | XXX | XXX + 50 | 160 | 45 |
| Acciaio Inox | I2RCDR130-Øi2 | 130 | 180 | XXX | XXX + 50 | 160 | 45 |
| Acciaio Inox | I2RCDR150-Øi2 | 150 | 200 | XXX | XXX + 50 | 160 | 45 |
| Acciaio Inox | I2RCDR180-Øi2 | 180 | 230 | XXX | XXX + 50 | 160 | 45 |
| Acciaio Inox | I2RCDR200-Øi2 | 200 | 250 | XXX | XXX + 50 | 160 | 45 |
| Acciaio Inox | I2RCDR250-Øi2 | 250 | 300 | XXX | XXX + 50 | 160 | 45 |
| Acciaio Inox | I2RCDR300-Øi2 | 300 | 350 | XXX | XXX + 50 | 160 | 45 |
| Acciaio Inox | I2RCDR350-Øi2 | 350 | 400 | XXX | XXX + 50 | 160 | 45 |
| Acciaio Inox | I2RCDR400-Øi2 | 400 | 450 | XXX | XXX + 50 | 160 | 45 |
| Acciaio Inox | I2RCDR450-Øi2 | 450 | 500 | XXX | XXX + 50 | 160 | 45 |
| Acciaio Inox | I2RCDR500-Øi2 | 500 | 550 | XXX | XXX + 50 | 160 | 45 |
IMPORTANTE ::. Come ordinare :
- scegliere nelle opzioni IL DIAMETRO MAGGIORE (MASCHIO)
- specificare nelle opzioni IL DIAMETRO MINORE (FEMMINA)
Termini consegna materiale : 1 settimana
Certificazione : KIWA
Garanzia: 10 Anni
NON VENDIBILE CON PAGAMENTO CONTRASSEGNO
ARTICOLO SPECIALE REALIZZATO SU MISURA - NON RESTITUIBILE
