Description

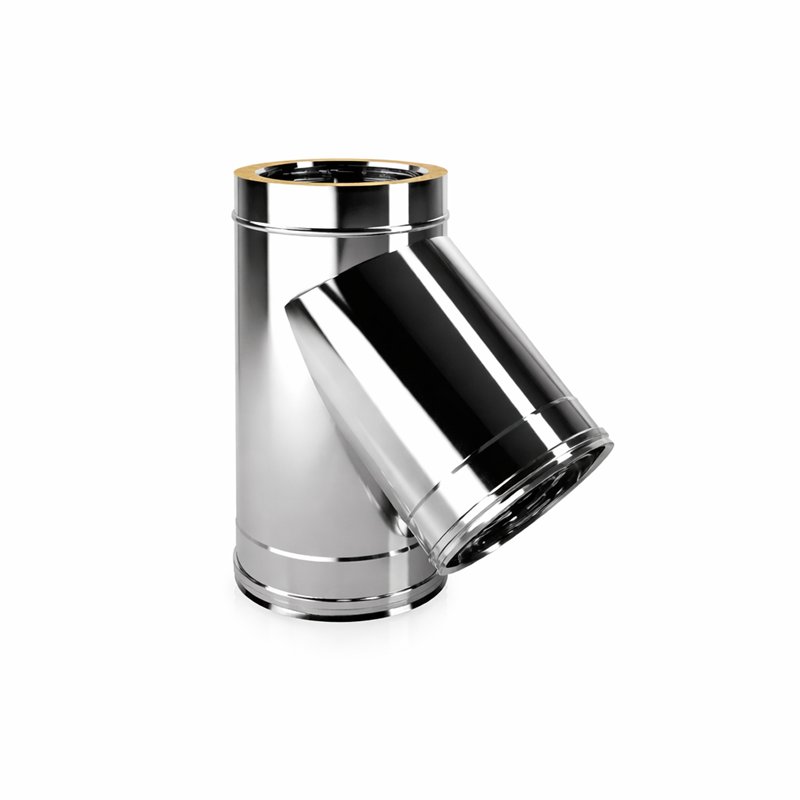

BRAGA Tee Fitting 135 ° (45 °)
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 INOX


Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The 45 ° T fitting allows the connection between the vertical flue and the horizontal smoke channel; the inclination of 45 ° considerably reduces the flow resistance improving the efficiency.
The horizontal connection is in double wall system with MALE connection
Not suitable for combination with condensing generators

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Aisi 316 stainless steel internal wall - Aisi 304BA stainless steel external wall

  Cod. Øi Øe A B C Hu I
Acciaio Inox I2T480 80 130 265 187 75 315 45
Acciaio Inox I2T4100 100 150 275 194 75 335 45
Acciaio Inox I2T4130 130 180 315 223 80 385 45
Acciaio Inox I2T4150 150 200 330 233 85 405 45
Acciaio Inox I2T4180 180 230 390 276 90 455 45
Acciaio Inox I2T4200 200 250 415 293 100 495 45
Acciaio Inox I2T4250 250 300 475 336 105 545 45
Acciaio Inox I2T4300 300 350 520 368 115 625 45
Acciaio Inox I2T4350 350 400 630 445 145 765 45
Acciaio Inox I2T4400 400 450 690 488 170 845 45
Acciaio Inox I2T4450 450 500 755 534 175 915 45
Acciaio Inox I2T4500 500 550 815 576 180 945 45


Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni
