Base plate with central exhaust flue double wall ISO25 De Marinis Inox
  • Base plate with central exhaust flue double wall ISO25 De Marinis Inox
  • Base plate with central exhaust flue double wall ISO25 De Marinis Inox

Base plate with central exhaust flue double wall ISO25 De Marinis Inox

I2PPC80

Base plate with central exhaust flue double wall ISO25 De Marinis Inox

Diametro
€101.90
€81.52 Save 20%
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description

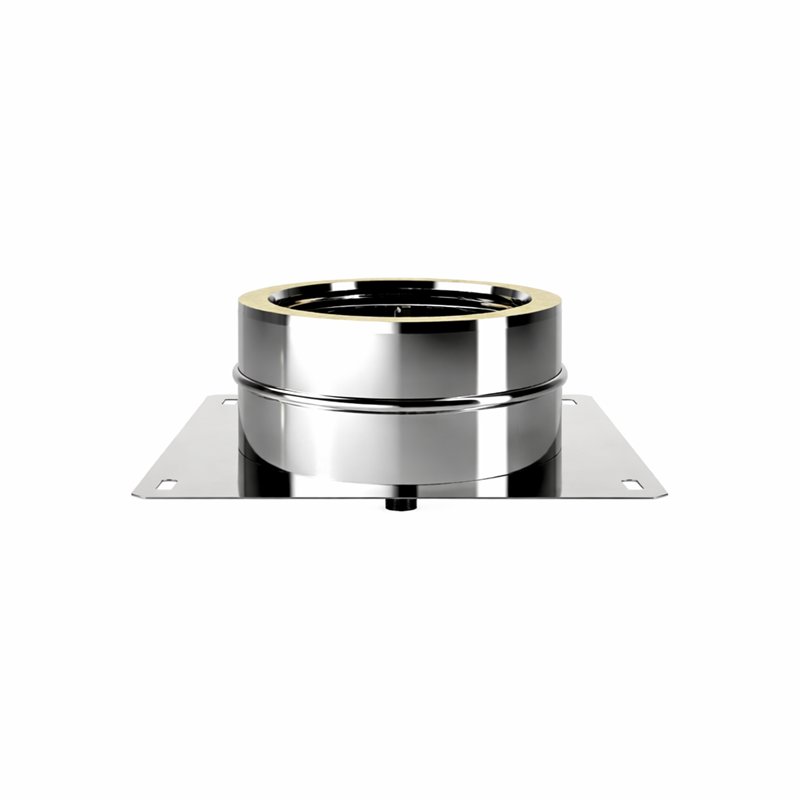

BASE PLATE WITH CENTRAL CONDENSATE DISCHARGE
STAINLESS STEEL CHIMNEY - DOUBLE WALL
ISO25 INOX SYSTEM



Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The base plate, installed on the ground or with support wings art. DEM.CUCP or DEM.CUCPC, allows the support of the chimney. It is equipped with a 3/4 "female threaded fitting for the central condensate drain. Especially suitable for combination with condensing generators.

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel




  Cod. Øi Øe Hu A B I
Acciaio Inox I2PPC80 80 130 60 220 200 45
Acciaio Inox I2PPC100 100 150 60 240 220 45
Acciaio Inox I2PPC130 130 180 60 270 250 45
Acciaio Inox I2PPC150 150 200 60 290 270 45
Acciaio Inox I2PPC180 180 230 60 320 300 45
Acciaio Inox I2PPC200 200 250 60 330 320 45
Acciaio Inox I2PPC250 250 300 60 390 370 45
Acciaio Inox I2PPC300 300 350 60 440 420 45
Acciaio Inox I2PPC350 350 400 60 490 470 45
Acciaio Inox I2PPC400 400 450 60 540 520 45
Acciaio Inox I2PPC450 450 500 60 590 580 45
Acciaio Inox I2PPC500 500 550 60 640 620 45

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia : 10 Anni

Product Details
I2PPC80

Specific References

MPN
I2PPC
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
