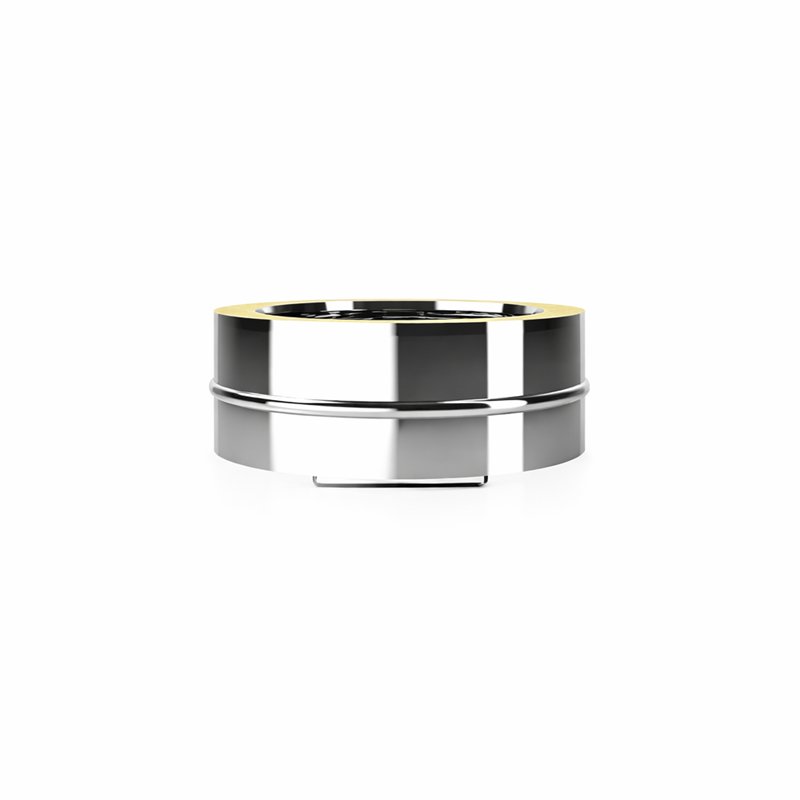

Blind plug double wall flue ISO25 De Marinis Inox
  • Blind plug double wall flue ISO25 De Marinis Inox
  • Blind plug double wall flue ISO25 De Marinis Inox

Blind plug double wall flue ISO25 De Marinis Inox

I2TA
De Marinis

Blind plug double wall flue ISO25 De Marinis Inox

Diametro
€46.35
€37.08Save 20%
Quantity

help_outlineAsk about product
Blind plug double wall flue ISO25 De Marinis Inox

Blind plug double wall flue ISO25 De Marinis Inox

Blind plug double wall flue ISO25 De Marinis Inox

I accept privacy policy rules

  TRUSTED EXPERIENCE SINCE 1913

Over 100 years of experience in hardware, tools and technical products.

  PHYSICAL STORE & CUSTOMER SUPPORT

We also have a physical store in La Loggia (Turin): real people ready to help before and after your

  ORDERS PREPARED WITH CARE

We prepare every order with care

Description

BLIND CAP
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 INOX SYSTEM


Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The blind cap with handle is installed at the base of the flue system for closing and inspection, or as a predisposition on a T-fitting

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel

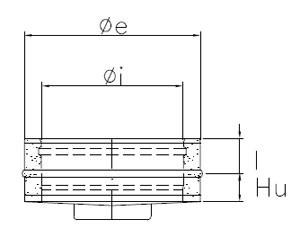

  Cod. Øi Øe Hu I
Acciaio Inox I2TA80 80 130 40 45
Acciaio Inox I2TA100 100 150 40 45
Acciaio Inox I2TA130 130 180 40 45
Acciaio Inox I2TA150 150 200 40 45
Acciaio Inox I2TA180 180 230 40 45
Acciaio Inox I2TA200 200 250 40 45
Acciaio Inox I2TA250 250 300 40 45
Acciaio Inox I2TA300 300 350 40 45
Acciaio Inox I2TA350 350 400 40 45
Acciaio Inox I2TA400 400 450 40 45
Acciaio Inox I2TA450 450 500 40 45
Acciaio Inox I2TA500 500 550 40 45

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni


Product Details
I2TA

Specific References

MPN
I2TA
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
