Description

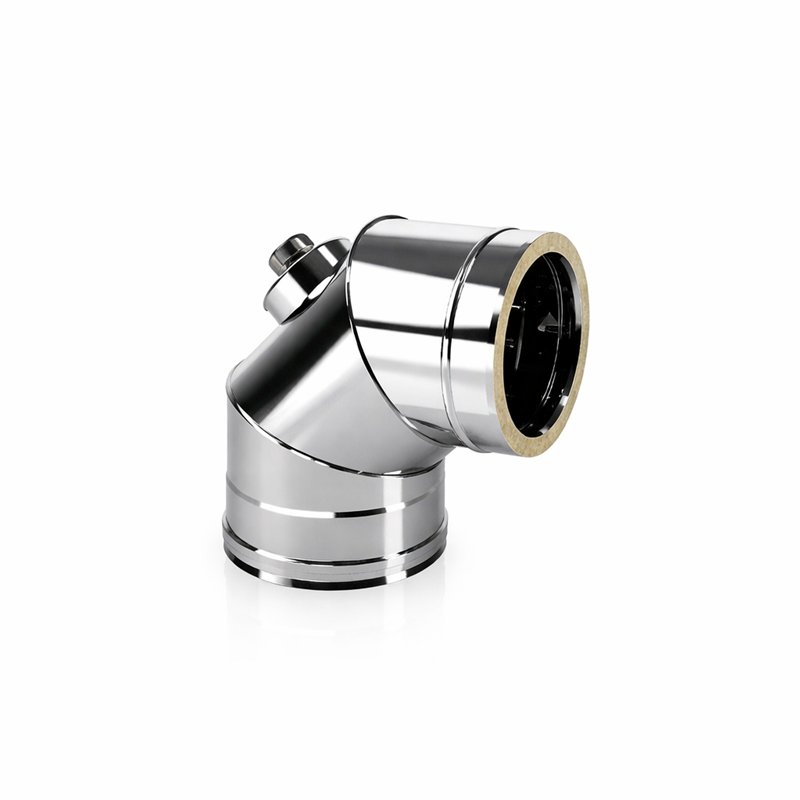

CURVE 90 ° WITH INSPECTION
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 INOX SYSTEM

Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability.


Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The 90 ° curve allows to move both vertically and horizontally with an inspection cap with silicone gasket to facilitate cleaning and maintenance of the horizontal section. The element is not suitable for use with temperatures above 200 ° C; in this case it is necessary to combine the high temperature cap cod. DEM.TAIXHI (to be ordered separately)

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel

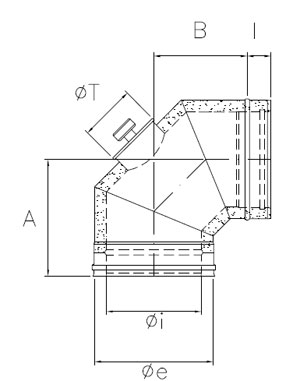

  Cod. Øi Øe A B I
Acciaio Inox I2C9IT80* 80 130 161 106 45
Acciaio Inox I2C9IT100* 100 150 173 118 45
Acciaio Inox I2C9IT130* 130 180 190 135 45
Acciaio Inox I2C9IT150* 150 200 215 160 45
Acciaio Inox I2C9IT180* 180 230 229 174 45
Acciaio Inox I2C9IT200* 200 250 239 184 45
Acciaio Inox I2C9IT250* 250 300 269 214 45
Acciaio Inox I2C9IT300* 300 350 295 251 45
Acciaio Inox I2C9IT350* 350 400 345 292 45
Acciaio Inox I2C9IT400* 400 450 398 332 45
Acciaio Inox I2C9IT450* 450 500 436 351 45
Acciaio Inox I2C9IT500* 500 550 481 398 45


Garanzia: 10 Anni

Termini consegna materiale : 1 settimana

Certificazione : KIWA
