Montegrappa TIMBRO EVO NIS - Hot air pellet stove with integrated upper smoke outlet with intelligent SMART ventilation and trapezoidal shape and inclined front
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)

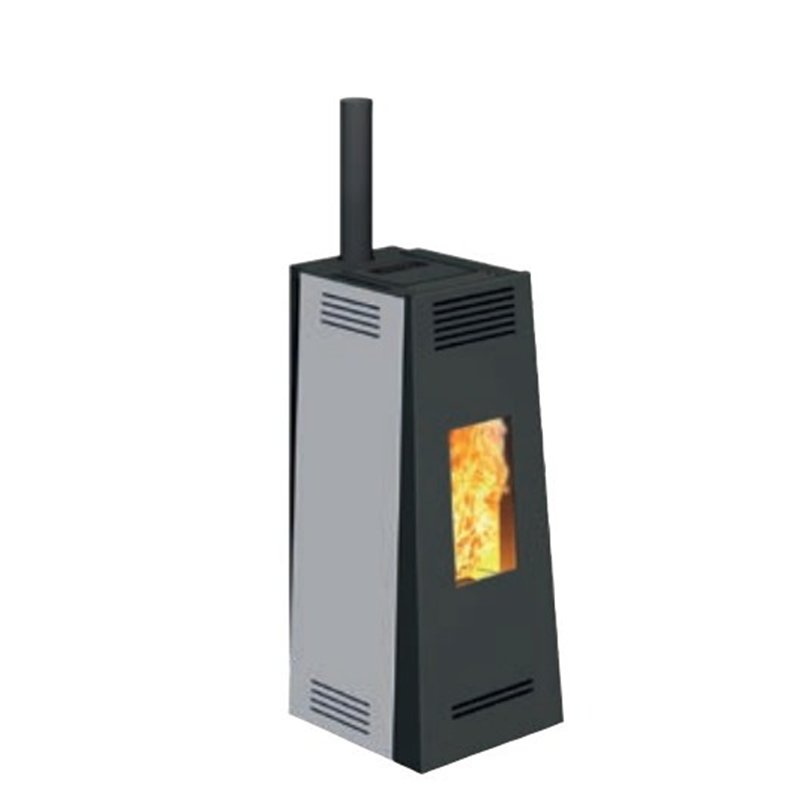

Air pellet stove with integrated vented upper smoke outlet. TIMBRO EVO NIS 9 EVO WIFI
L 46 x P 51.5 x H 111 cm
The trapezoidal shape, the inclined front, the large slots distinguish the contemporary design of Timbro Evo, designed to fit perfectly into environments with modern and minimal furnishings. The structure and the covering are in painted steel.
The combustion chamber is decorated with an elegant motif.
The Timbro Evo upholstery is available in two colors: metallic gray and black.
- Central integrated smoke outlet, with the possibility of installation up to 3 cm from the rear wall
- SMART ventilation: advanced software for the intelligent management of the air fan that allows the stove to operate in silent mode, guaranteeing excellent comfort.
- Standard Wi-Fi module
- Control panel equipped with backlit graphic display with TOUCH SCREEN digital icons
- Cylindrical cast iron burner equipped with flame deflector
- Intuitive software with setting of both the ambient temperature and the maximum operating power. Equipped with STAND BY function to maintain the desired comfort of the internal environment
- Chronothermostat with settable temperature and with the possibility of choosing the operating power of each programmed time slot
potenza termica globale (al focolare) | 9,3 | kW | |
potenza certificata | 3,8 - 8,6 | kW | |
CO misurato (al 13% di ossigeno) | 0,0027 | % | |
rendimento | 92,1 | % | |
consumo combustibile | 0,83 - 1,94 | kg/h | |
portata in massa dei fumi | 3,1 - 6,2 | g/s | |
temperatura dei fumi | 63 - 135 | °C | |
tiraggio (depressione al camino) | 7 | Pa | |
capacità serbatoio | 18 | Kg | |
autonomia | 21,5 - 9 | h | |
tubo uscita fumi | Ø 80 | mm | |
ingresso aria per la combustione | Ø 60 | mm | |
superficie riscaldabile a potenza certificata | 98 | *mq | |
peso netto | 78 | kg |
Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
Data sheet
