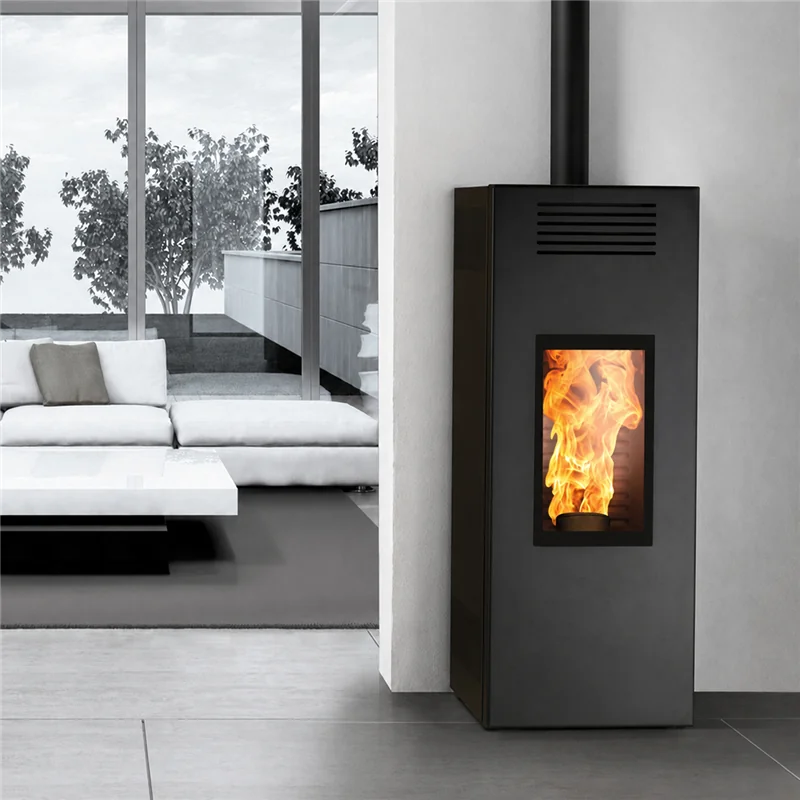

Air pellet stove with integrated upper ventilated smoke outlet NOIR EVO NIS 9 EVO WIFI L 40 x P 47.5 x H 109 cm
The clear lines and the ultra-minimal design distinguish Noir Evo. The structure and the cladding are both in painted steel, with a large screen-printed glass that emphasizes the flame. The combustion chamber is decorated with an elegant motif. The Noir Evo upholstery is available in four colors: mocha, greige, red and black.
- Central integrated smoke outlet, with the possibility of installation up to 3 cm from the rear wall - SMART ventilation: advanced software for the intelligent management of the air fan that allows the stove to operate in silent mode, guaranteeing excellent comfort. - Standard Wi-Fi module - Control panel equipped with backlit graphic display with TOUCH SCREEN digital icons - Cylindrical cast iron burner equipped with flame deflector - Intuitive software with setting of both the ambient temperature and the maximum operating power. Equipped with STAND BY function to maintain the desired comfort of the internal environment - Chronothermostat with settable temperature and with the possibility of choosing the operating power of each programmed time slot
potenza termica globale (al focolare)
9,3
kW
potenza certificata
3,8 - 8,6
kW
CO misurato (al 13% di ossigeno)
0,0027
%
rendimento
92,1
%
consumo combustibile
0,83 - 1,94
kg/h
portata in massa dei fumi
3,1 - 6,2
g/s
temperatura dei fumi
63 - 135
°C
tiraggio (depressione al camino)
7
Pa
capacità serbatoio
18
Kg
autonomia
21,5 - 9
h
tubo uscita fumi
Ø 80
mm
ingresso aria per la combustione
Ø 60
mm
superficie riscaldabile a potenza certificata
98
*mq
peso netto
78
kg
Classe Energetica: A+ Certificazione EcoDesign 2022 Livello di prestazione ambientale
