Description

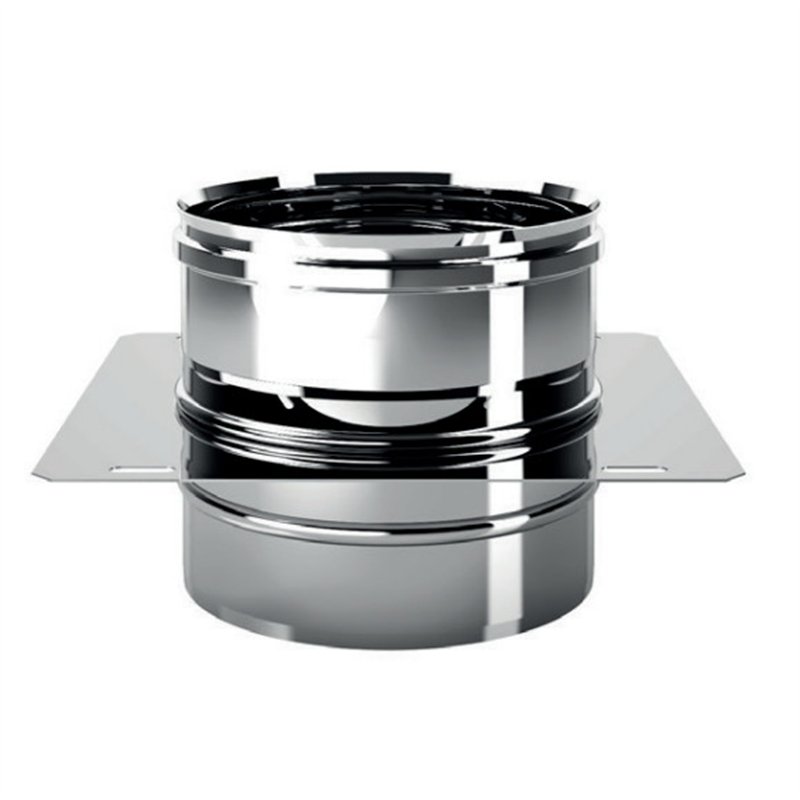

SUPPORT PLATE WITH STRAIGHT ELEMENT
STAINLESS STEEL CHIMNEY - SINGLE WALL
MONO SYSTEM

Mono is the single-walled flue in stainless steel
Made entirely of AISI 316L stainless steel with BA finish, it guarantees the highest performance and resistance to acid condensation.
Allows the creation of flues and metal chimneys both indoors and outdoors.
Thanks to the cup joint, they can be connected with the possibility of 360 ° rotation avoiding alignment problems typical of screwed or combined systems.
In the case of use in combination with generators that produce humid fumes, cooking vapors or that operate with positive pressures, the gasket (art. DEM.G) not included must be used
The whole MONO INOX line is certified according to European standard EN-1856-2: 2009 and is guaranteed for 10 years

The plate with straight element, resting on a structure or on the wall by means of support fins art. DEM.CP allows you to divide the weight loads into several points

Designation: Chimney system EN 1856-2: 2009
Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type and thickness: L50040 / 050 AISI 316 L BA steel

  Cod. Øn Hu Hn A B I
Acciaio Inox MPI80 80 132 90 165 150 45
Acciaio Inox MPI100 100 132 90 200 170 45
Acciaio Inox MPI110 110 132 90 200 190 45
Acciaio Inox MPI120 120 132 90 200 190 45
Acciaio Inox MPI130 130 132 90 220 200 45
Acciaio Inox MPI140 140 132 90 230 210 45
Acciaio Inox MPI150 150 132 90 240 220 45
Acciaio Inox MPI160 160 132 90 250 230 45
Acciaio Inox MPI180 180 132 90 270 250 45
Acciaio Inox MPI200 200 132 90 290 270 45
Acciaio Inox MPI220 220 132 90 320 300 45
Acciaio Inox MPI250 250 132 90 330 320 45
Acciaio Inox MPI300 300 132 90 390 370 45
Acciaio Inox MPI350 350 132 90 440 420 45
Acciaio Inox MPI400 400 132 90 490 470 45
Acciaio Inox MPI450 450 132 90 540 520 45
Acciaio Inox MPI500 500 132 90 590 580 45


Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni



Product Details
MPI80

Data sheet

System
Single wall
Component
Piastra
Material
AISI316 stainless steel

Specific References

ean13
2002001641327
MPN
MPI
Attachments
Download
MONO series technical data sheet

MONO series technical data sheet

Download (73KB)
DOP Mono Inox series

DOP Mono Inox series

Download (128.61KB)
