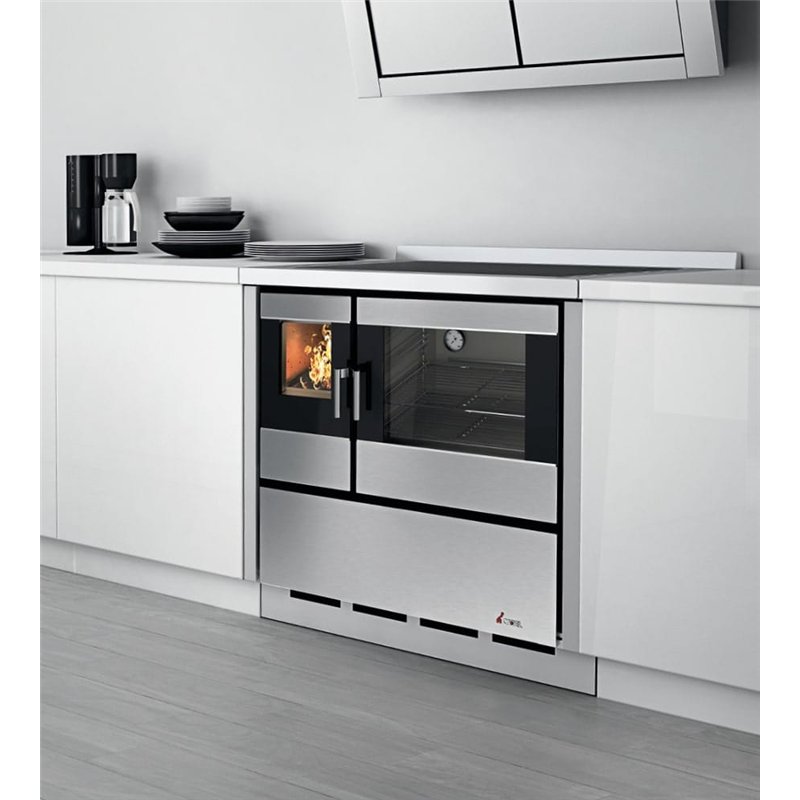

Cadel Kook 90: 7.5 kW built-in wood-burning cooker with large stainless-steel oven

Cadel Kook 90 is a 7.5 kW built-in wood-burning cooker designed to combine room heating, hob cooking and oven cooking in a single appliance.

With an overall width of approximately 90 cm, it is the largest model in the Kook family and places particular emphasis on cooking capacity thanks to its 42 × 42 × 29 cm stainless-steel oven.

The cast-iron cooking hob, refractory-lined combustion chamber, secondary combustion air and practical lower storage drawer make Kook 90 a genuine modern wood-burning range cooker for everyday use.

Why choose Cadel Kook 90

• 7.5 kW nominal heat output.
• Built-in wood-burning cooker designed for kitchen integration.
• Large panoramic stainless-steel oven.
• Internal oven dimensions: 42 × 42 × 29 cm.
• Cast-iron cooking hob.
• Refractory-lined combustion chamber.
• Secondary combustion air.
• Wood logs up to approximately 33 cm.
• Lower sliding storage drawer.
• Top or rear flue outlet.
• Optional ventilation and lighting.
• Indicative heating volume up to 214 m³.
• 82.5% efficiency in natural-convection configuration.
• Up to 84% efficiency in the ventilated configuration.
• A+ energy class.

The Kook model with the largest oven

Kook 90 is the largest cooker in the Cadel Kook family and is particularly focused on oven capacity.

Its 42 cm wide and 42 cm deep oven provides substantially more usable cooking space than the smaller versions and is especially suitable for customers who intend to use the wood-burning cooker regularly for food preparation.

Large panoramic stainless-steel oven

The Cadel Kook 90 oven is made from stainless steel and measures approximately 42 cm wide, 42 cm deep and 29 cm high.

The large glazed surface provides a clear view of the food during cooking and makes the oven one of the most distinctive design elements of the cooker.

Its generous dimensions make it suitable for bread, focaccia, roasts, cakes, baking trays and many other dishes prepared using traditional wood-fired heat.

The stainless-steel interior also provides a durable and practical surface for routine cleaning.

Cast-iron cooking hob

Kook 90 features a cast-iron cooking hob, a material particularly suited to traditional wood-fired cooking thanks to its excellent heat-storage and distribution properties.

Different areas of the hob naturally reach different temperatures depending on their distance from the firebox, allowing cooking intensity to be adjusted by repositioning pots and pans.

Heating and cooking with one appliance

Cadel Kook 90 uses the energy generated by the wood fire to perform three functions simultaneously: heating the room, heating the cooking hob and bringing the oven up to temperature.

It is therefore particularly suitable for customers looking for a genuine built-in wood-burning range cooker rather than simply a room heater with a hot upper surface.

Refractory-lined combustion chamber

The combustion chamber features an internal refractory lining.

The refractory material helps maintain high temperatures inside the firebox and supports stable, effective wood combustion.

Secondary combustion air

Kook 90 uses secondary combustion air to promote more complete burning of gases released during the primary combustion stage.

This helps make more effective use of the energy contained in the wood and contributes to the specified performance and emission levels.

Wood logs up to 33 cm

The firebox is designed for wood logs up to approximately 33 cm long.

Cadel specifies maximum wood consumption of approximately 2.2 kg/h at nominal operation.

Lower sliding storage drawer

A practical lower sliding drawer provides convenient storage close to the cooker.

It can be used to keep a small quantity of firewood or useful cooking and stove accessories within easy reach.

Optional ventilation and lighting

Kook 90 can be equipped with an optional ventilation and lighting kit.

Ventilation helps distribute heat through the room more quickly. Cadel specifies useful efficiency of up to 84% for the ventilated configuration, compared with 82.5% for the natural-convection configuration.

Lighting improves visibility when using the oven.

These features are optional and should be checked according to the selected product configuration.

Top or rear flue outlet

Cadel Kook 90 uses an Ø 140 mm flue outlet that can be configured at either the top or rear of the appliance.

A dedicated Ø 80 mm combustion air inlet is also provided.

How much space can Cadel Kook 90 heat?

Cadel specifies an indicative maximum heating volume of approximately 214 m³.

This value is indicative. Actual heating capacity depends on building insulation, climate zone, ceiling height, exposure and actual heat loss.

Correct appliance sizing should therefore be based on the actual thermal requirements of the property.

Cadel Kook 90 technical specifications

Built-in installation and chimney system

Cadel Kook 90 is designed for integration into a kitchen composition.

Installation must comply with the safety clearances, technical spaces, ventilation requirements, insulation requirements and all instructions specified in Cadel's technical documentation.

The chimney system must be correctly sized according to appliance output, chimney height, flue route and required draught.

Installation must be carried out by qualified personnel.
