![Montegrappa LIGHT 01 wood-burning fireplace Montegrappa LIGHT 01 wood-burning fireplace](https://matteoda.b-cdn.net/38363-large_default/montegrappa-light-01-wood-burning-fireplace.jpg)
Reference: 1530200100
Brand: Caminetti Montegrappa
Natural convection air ducting kit 1530200100 Montegrappa
Natural convection air ducting kit 1530200100 Montegrappa
No supplier
Caminetti Montegrappa LIGHT 01 - Wood-burning fireplace with door entirely in ceramic glass, latch and flap opening for cleaning. The fireplace can be completed with two optional kits for hot air distribution in both the natural and ventilated versions.
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)

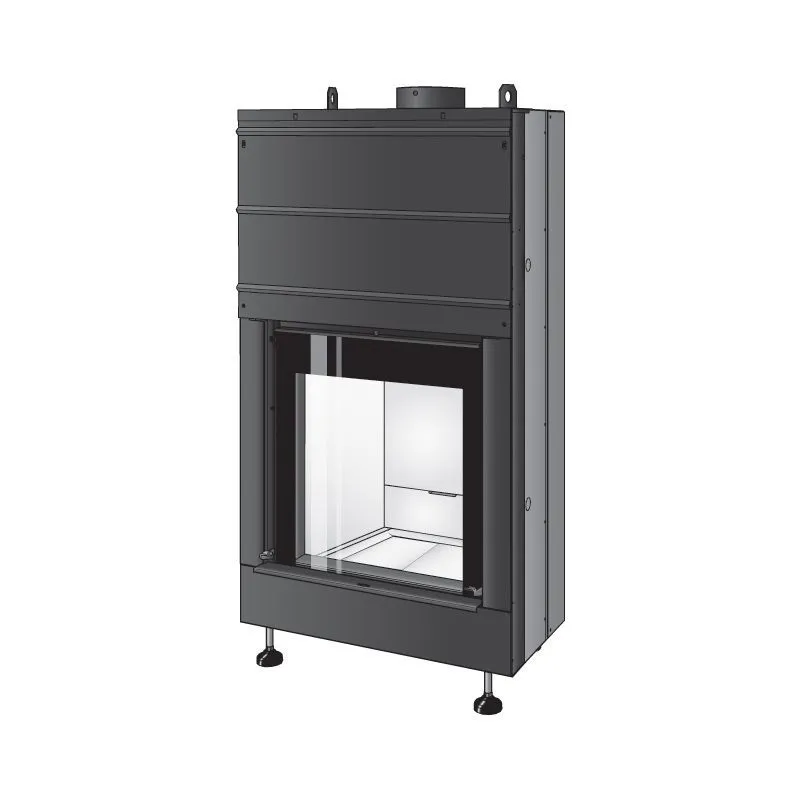

Wood-burning fireplace LIGHT 01 with natural convection, ductable
size 74x52.5x138cm
Wood-burning fireplace with door entirely in ceramic glass, latch and flap opening for cleaning. Combustion chamber lined with CMtech®, a refractory made with significant thicknesses; in the upper part the Catalyst-Flame Arrester is in CMtech®2, ceramic refractory.
The fireplace can be completed with two optional kits for hot air distribution in both the natural and ventilated versions
The equipment of the monoblock includes:
- tools for regulating the combustion air and for opening the door
- ash collector scoop
Classe di qualità (D.M. 186 - 7/11/2017) | ![]() | ||
potenza termica globale (al focolare) | 13,9 | kW | |
potenza certificata | 12,0 | kW | |
CO misurato (al 13% di ossigeno) | 0,065 | % | |
rendimento | 86,0 | % | |
consumo combustibile | 3,30 | kg/h | |
portata in massa dei fumi | 8,10 | g/s | |
temperatura dei fumi | 256 | °C | |
tiraggio (depressione al camino) | 12 | Pa | |
tubo uscita fumi | Ø 180 | mm | |
sez. interna canna fumaria | Ø 18 / 18x18 | cm | |
altezza min. canna fumaria | 4 | m | |
condotti entrata aria | - | cm | |
superficie riscaldabile a potenza certificata | 138 | *mq | |
peso netto | 191 | kg | |
peso con imballo | 206 | kg |
Classe Energetica: A+
Livello di prestazione ambientale ««««
