Reference: 1530200100
Brand: Caminetti Montegrappa
Natural convection air ducting kit 1530200100 Montegrappa
Natural convection air ducting kit 1530200100 Montegrappa
No supplier
Caminetti Montegrappa LIGHT 06 15 kW - Wood-burning fireplace which is characterized by its rectangular shape with an "extra-large" horizontal development.
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)

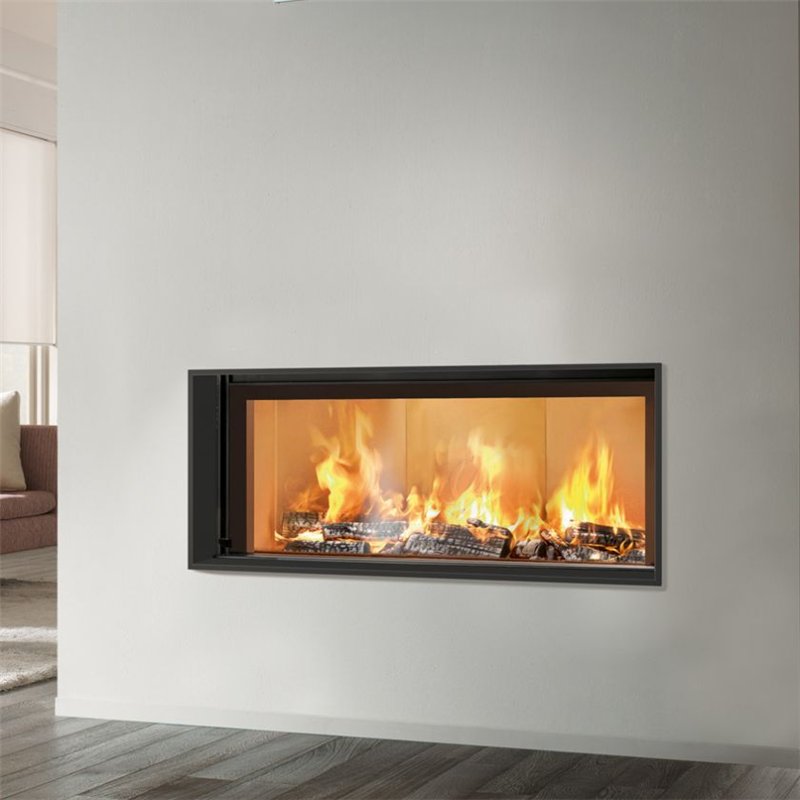

LIGHT 06 wood-burning fireplace with natural convection, ventilated

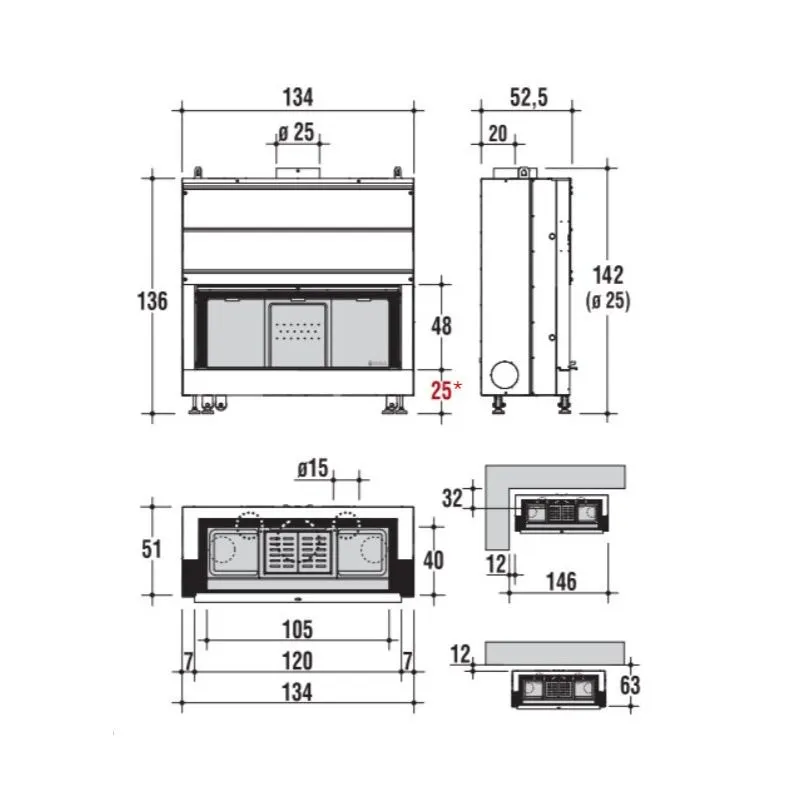

size 134x52.5x142
Wood-burning fireplace that is characterized by the rectangular shape with an "extralarge" horizontal development.
The door is entirely in ceramic glass with a latch mechanism and flap opening for cleaning. Combustion chamber lined with CMtech®, a refractory made with significant thicknesses; in the upper part the Catalyst-Flame Arrester is in CMtech®2, ceramic refractory.
The equipment of the monoblock includes:
- tools for regulating the combustion air and for opening the door
- 1 ash scoop
LIGHT 06V (ventilated hot air version):
- 1 remote control - 1 adjustable gray nozzle (85x12.5 cm)
- 1 long hopper assembly - 2 PVC grids 14.6x17.5 cm
- 2 Ø 15 cm air manifold assemblies - 2 Ø 15 cm pipe connection manifolds
- 6 hose clamps (Ø 6/17 cm) - 2 pieces of 150 cm aluminum hose Ø 15 cm
- 1 piece of 200 cm long Ø 12 cm aluminum hose
- 1 150 cm length of Ø 12 cm aluminum hose
- 2 inlets for grate Ø 12 cm - 6 galvanized screws
- 1 mobile fan box assembly complete with:
- 1 probe wire clip
- 1 mouthpiece Ø 22 cm -1 electric harness
- 1 probe -1 fan assembly with bracket
- 1 electronic control unit assembly + PWM capacitor
LIGHT 06N | LIGHT 06V | |||
convezione naturale | ventilato | |||
Classe di qualità (D.M. 186 - 7/11/2017) | ||||
potenza termica globale (al focolare) | 18,1 | 17,5 | kW | |
potenza certificata | 15,0 | 15,0 | kW | |
CO misurato (al 13% di ossigeno) | 0,052 | 0,052 | % | |
rendimento | 82,5 | 85,5 | % | |
consumo combustibile | 4,4 | 4,2 | kg/h | |
portata in massa dei fumi | 15,5 | 14,7 | g/s | |
temperatura dei fumi | 242 | 196 | °C | |
tiraggio (depressione al camino) | 12 | 12 | Pa | |
tubo uscita fumi | Ø 250 | Ø 250 | mm | |
sez. interna canna fumaria | Ø 25 / 25x25 | Ø 25 / 25x25 | cm | |
altezza min. canna fumaria | 5 | 5 | m | |
condotti entrata aria | 2 x Ø 15 | 2 x Ø 15 | cm | |
superficie riscaldabile a potenza certificata | 172 | 172 | *mq | |
peso netto | 289 | 306 | kg | |
peso con imballo | 316 | 335 | kg |
Classe Energetica: A+
Livello di prestazione ambientale ««««
Data sheet
