Reference: 6204009700
Brand: Caminetti Montegrappa
LOGICO cladding for fireplace CM P05 Montegrappa
LOGICO cladding for fireplace CM P05 Montegrappa
No supplier

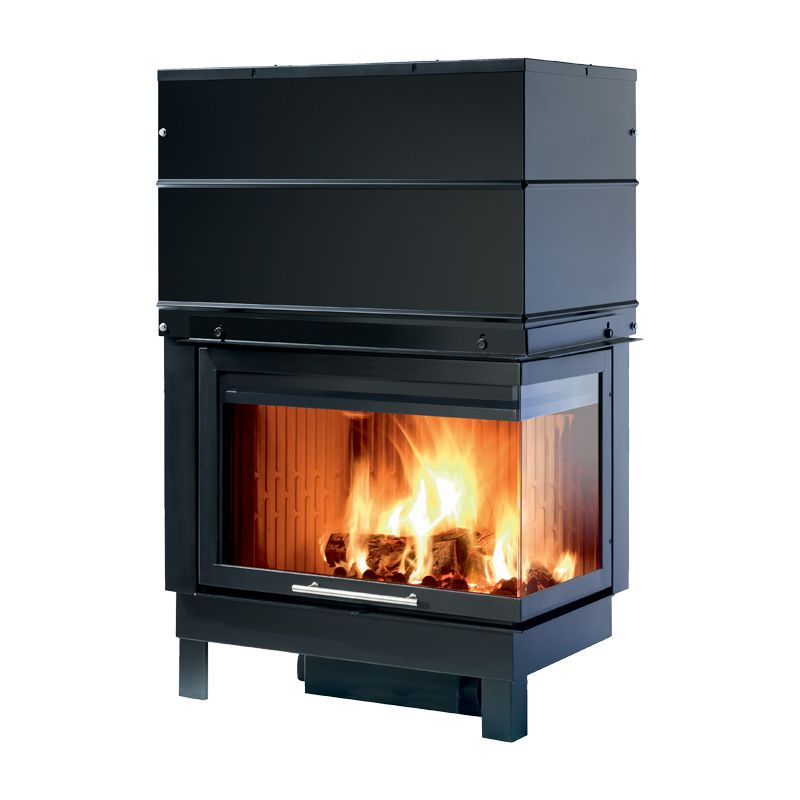

Caminetti Montegrappa CM P05 11 kW - Wood-burning fireplace with uninterrupted vision of the fire on two sides, thanks to the ceramic glass in a single shaped plate.
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)
CM P05 angular wood-burning fireplace with natural convection, ventilated
size 92x55x146cm
Wood-burning fireplace with uninterrupted vision of the fire on two sides, thanks to the ceramic glass in a single shaped plate. It is distinguished by the corner door with painted steel edge, which can be opened up and down with a stainless steel handle; door opening for cleaning. Combustion chamber complete with catalyst-flame arrester lined with CMtech®2, ceramic refractory, with cast iron fire bed.
Versions with hot air or natural convection, left or right are available
The equipment of the monoblock includes:
- 1 piece of flexible aluminum tube Ø 12 cm extendable up to 200 cm for air inlet
- 1 piece of flexible aluminum tube Ø 12 cm extendable up to 150 cm for air inlet
- 2 pieces of flexible aluminum tube Ø 15 cm extendable up to 150 cm for hot air outlet
- 2 PVC grilles complete with Ø 12 cm inlet to protect the external air intakes
- 2 hoppers in aluminised sheet steel for hot air outlet nozzles Ø 15 cm
- 2 adjustable vents with partial closure, in white painted aluminium, for hot air outlet
- 6 universal hose clamps (60/170 mm)
- tools for regulating the combustion air and for opening the door
- 1 cast iron shelf/wood holder
- 1 cast iron grate for fire bed
- 1 cinerary in aluminized steel sheet
only for CM P05V
- 1 suction fan complete with 350 cm power cable with relative sheath connected to the fan
- 1 electronic control unit programmed for starting, stopping and adjusting the fan speed
according to the outlet air temperature detected by the probe
- 1 remote control
CMP 05N | CMP 05V | |||
convezione naturale | ventilato | |||
Classe di qualità (D.M. 186 - 7/11/2017) | ||||
potenza termica globale (al focolare) | 14,3 | 12,9 | kW | |
potenza certificata | 11,0 | 11,0 | kW | |
CO misurato (al 13% di ossigeno) | 0,052 | 0,052 | % | |
rendimento | 77,0 | 85,4 | % | |
consumo combustibile | 2,51 | 2,28 | kg/h | |
portata in massa dei fumi | 12,7 | 10,1 | g/s | |
temperatura dei fumi | 256 | 188 | °C | |
tiraggio (depressione al camino) | 12 | 12 | Pa | |
tubo uscita fumi | Ø 180 | Ø 180 | mm | |
sez. interna canna fumaria | Ø 18 / 18x18 | Ø 18 / 18x18 | cm | |
altezza min. canna fumaria | 4 | 4 | m | |
condotti entrata aria | 2 x Ø 12 | 2 x Ø 12 | cm | |
superficie riscaldabile a potenza certificata | 128 | 134 | *mq | |
peso netto | 234 | 237 | kg | |
peso con imballo | 257 | 260 | kg |
Classe Energetica: A+
Livello di prestazione ambientale ««««
