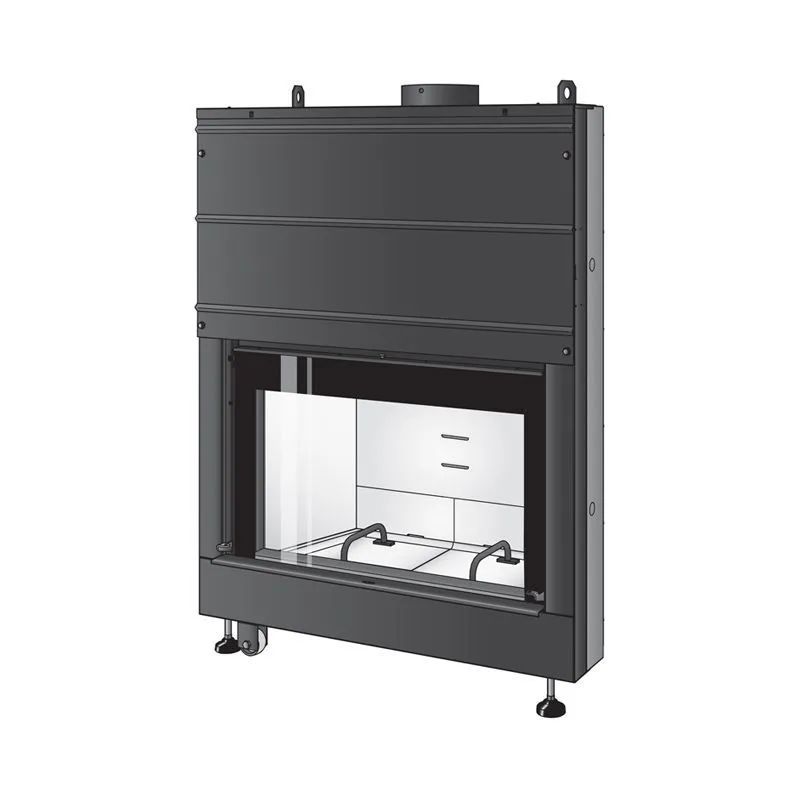

LIGHT 02 ventilated wood-burning fireplace (5 stars)
Dimensions: 104 x 52 x 137 cm
This wood-burning fireplace features a wide, all-ceramic glass door with a lift-and-slide opening for cleaning.
The combustion chamber is lined with CMtech®, a thick refractory material; the upper section features a flame arrester made of CMtech®2, a ceramic refractory material.
The stove comes with:
- tools for adjusting the combustion air and opening the door
- 1 ash scoop
- 1 remote control - 1 adjustable gray vent (85x12.5 cm)
- 1 long hopper assembly - 2 PVC grates 14.6x17.5 cm
- 2 air collector assemblies Ø 15 cm - 2 pipe connectors Ø 15 cm
- 6 hose clamps (Ø 6/17 cm) - 2 150 cm sections of Ø 15 cm flexible aluminum pipe
- 1 200 cm section of Ø 12 cm flexible aluminum pipe
- 1 150 cm section of Ø 12 cm flexible aluminum pipe
- 2 grate inlets Ø 12 cm - 6 galvanized screws
- 1 assembly Mobile fan box complete with:
- 1 probe cable holder
- 1 Ø 22 cm nozzle - 1 electrical harness
- 1 probe - 1 fan assembly with bracket
- 1 electronic control unit + PWM capacitor assembly
| | LIGHT 02V E | |
| | ventilato | |
| Classe di qualità (D.M. 186 - 7/11/2017) |  | |
| potenza termica globale (al focolare) | 19,6 | kW |
| potenza certificata | 16,7 | kW |
| CO misurato (al 13% di ossigeno) | 0,0418 | % |
| rendimento (η) | 85,2 | % |
| Particolato primario (PP) al 13% di ossigeno | 14 | mg/Nm3 |
| COT (al 13% di ossigeno) | 29 | mg/Nm3 |
| consumo medio combustibile | 4,6 | kg/h |
| portata in massa dei fumi | 15,2 | g/s |
| temperatura dei fumi | 192 | °C |
| tiraggio (depressione al camino) | 11 | Pa |
| tubo uscita fumi | Ø 200 | mm |
| sez. interna canna fumaria | Ø 20 / 20x20 | cm |
| altezza min. canna fumaria | 4 | m |
| condotti entrata aria | 2 x Ø 15 | cm |
| superficie riscaldabile a potenza certificata | 192 | *mq |
| peso netto | 263 | kg |
| peso con imballo | 286 | kg |
Classe Energetica: A+
Livello di prestazione ambientale ««««
