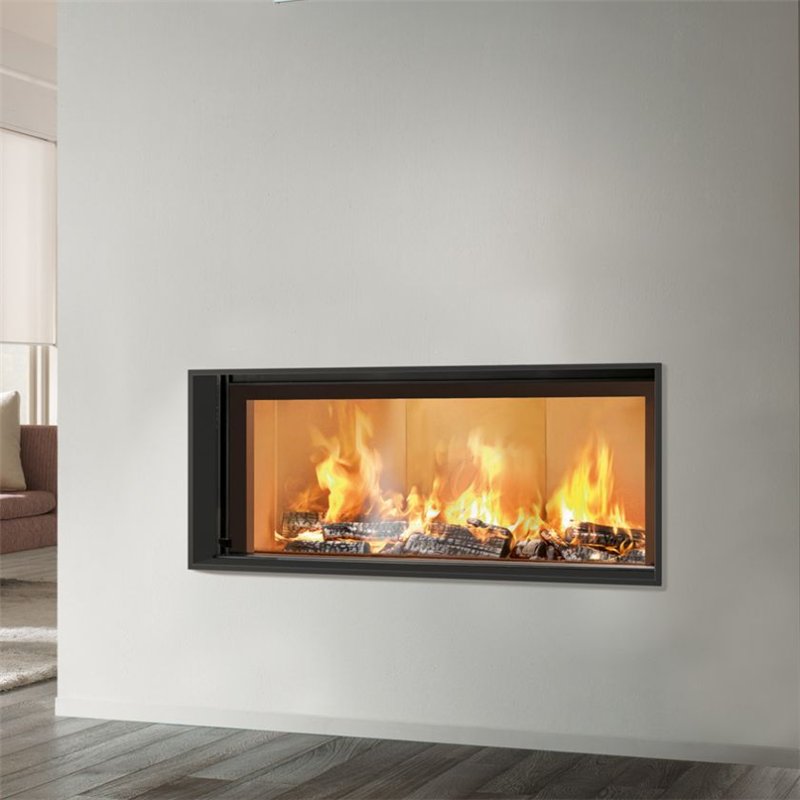

The Montegrappa LIGHT 06 134x48 15 kW wood-burning fireplace is an ideal solution for those seeking efficient heating and elegant design. This fireplace stands out for its extra-large rectangular shape, which offers a panoramic view of the fire thanks to the ceramic glass door with a lift-and-slide mechanism and tilt opening for easy cleaning.
The combustion chamber is lined with CMtech®, a high-quality refractory material that guarantees long-lasting durability and high heat resistance. Furthermore, the CMtech®2 flame arrester-catalyst improves combustion efficiency, reducing emissions and increasing energy efficiency by up to 85.5%.
Available in natural or fan-assisted convection versions, the LIGHT 06 offers a certified heat output of 15 kW, ideal for heating large spaces up to 172 m². Its A+ energy rating and low fuel consumption make it an eco-friendly and affordable choice.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
LIGHT 06 ventilated wood-burning fireplace
Dimensions: 134x52.5x142
This wood-burning fireplace features an extra-large, horizontal rectangular shape.
The door is made entirely of ceramic glass with a lift-and-slide mechanism and a tilt-and-slide opening for cleaning. The combustion chamber is lined with CMtech®, a thick refractory material; the upper section features a flame arrester made of CMtech®2, a ceramic refractory material.
The stove comes with:
- tools for adjusting the combustion air and opening the door
- 1 ash scoop
- 1 remote control - 1 adjustable gray vent (85x12.5 cm)
- 1 long hopper assembly - 2 PVC grates 14.6x17.5 cm
- 2 air collector assemblies Ø 15 cm - 2 pipe connectors Ø 15 cm
- 6 hose clamps (Ø 6/17 cm) - 2 150 cm sections of Ø 15 cm flexible aluminum pipe
- 1 200 cm section of Ø 12 cm flexible aluminum pipe
- 1 150 cm section of Ø 12 cm flexible aluminum pipe
- 2 grate inlets Ø 12 cm - 6 galvanized screws
- 1 assembly Mobile fan box complete with:
- 1 probe cable holder
- 1 Ø 22 cm nozzle - 1 electrical harness
- 1 probe - 1 fan assembly with bracket
- 1 electronic control unit + PWM capacitor assembly
| LIGHT 06V | ||
| ventilato | ||
| Classe di qualità (D.M. 186 - 7/11/2017) |  | |
| potenza termica globale (al focolare) | 17,5 | kW |
| potenza certificata | 15,0 | kW |
| CO misurato (al 13% di ossigeno) | 0,052 | % |
| rendimento | 85,5 | % |
| consumo combustibile | 4,2 | kg/h |
| portata in massa dei fumi | 14,7 | g/s |
| temperatura dei fumi | 196 | °C |
| tiraggio (depressione al camino) | 12 | Pa |
| tubo uscita fumi | Ø 250 | mm |
| sez. interna canna fumaria | Ø 25 / 25x25 | cm |
| altezza min. canna fumaria | 5 | m |
| condotti entrata aria | 2 x Ø 15 | cm |
| superficie riscaldabile a potenza certificata | 172 | *mq |
| peso netto | 306 | kg |
| peso con imballo | 335 | kg |
Classe Energetica: A+
Livello di prestazione ambientale ««««
