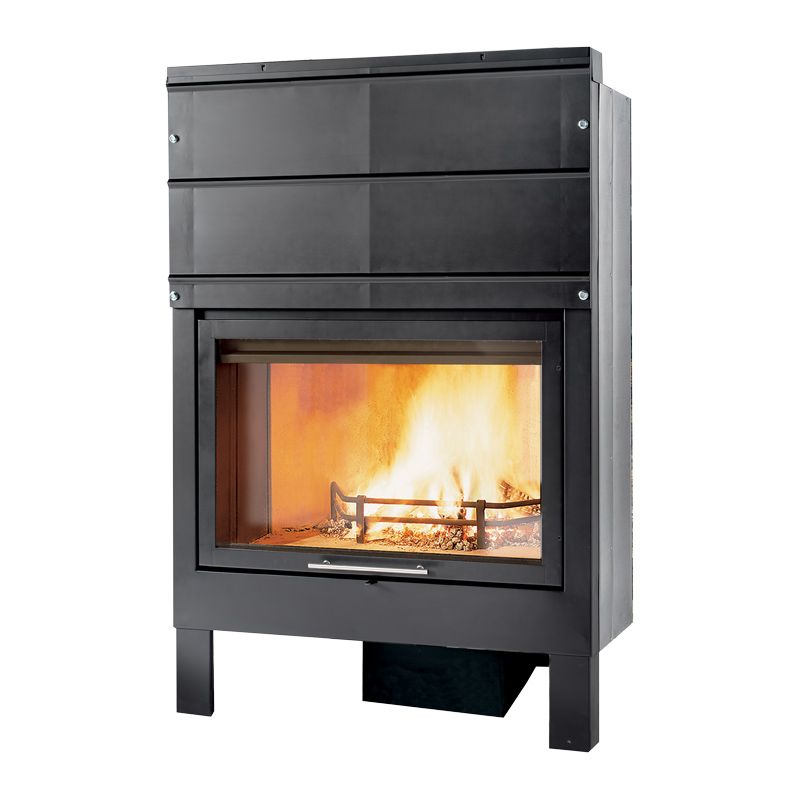

Caminetti Montegrappa CM P05 11 kW - Wood-burning fireplace with uninterrupted vision of the fire on two sides, thanks to the ceramic glass in a single shaped plate.
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)
MB MEGAFIRE wood-burning fireplace with natural convection, ventilated
size 109x79x163
Large wood burning fireplace; rectangular door with edge in painted steel and ceramic glass that can be opened up and down, with stainless steel handle and hinged door for cleaning. Combustion chamber lined with CMtech®, a refractory made with significant thicknesses; in the upper part the Catalyst-Flame Arrester is in CMtech®2, ceramic refractory. Versions with hot air or natural convection are available.
The equipment of the monoblock includes:
- 1 piece of flexible aluminum tube Ø 12 cm extendable up to 200 cm for air inlet
- 1 piece of flexible aluminum tube Ø 12 cm extendable up to 150 cm for air inlet
- 2 pieces of flexible aluminum tube Ø 15 cm extendable up to 150 cm for hot air outlet
- 2 PVC grilles complete with Ø 12 cm inlet to protect the external air intakes
- 2 hoppers in aluminised sheet steel for hot air outlet nozzles Ø 15 cm
- 2 adjustable vents with partial closure, in white painted aluminium, for hot air outlet
- 6 universal hose clamps (60/170 mm)
- tools for regulating the combustion air and for opening the door
- 1 iron log holder
- 1 cast iron grate for fire bed
- 1 cinerary in aluminized steel sheet
only for MB MEGAFIRE V
- 1 suction fan complete with 350 cm power cable with relative sheath connected to the fan
- 1 electronic control unit programmed for starting, stopping and speed regulation
of the fan according to the outlet air temperature detected by the probe
MB MEGAFIRE N | MB MEGAFIRE V | |||
convezione naturale | ventilato | |||
Classe di qualità (D.M. 186 - 7/11/2017) | ||||
potenza termica globale (al focolare) | 16,3 | 15,5 | kW | |
potenza certificata | 13,5 | 13,5 | kW | |
CO misurato (al 13% di ossigeno) | 0,085 | 0,093 | % | |
rendimento | 82,8 | 86,9 | % | |
consumo combustibile | 3,91 | 3,75 | kg/h | |
portata in massa dei fumi | 11,4 | 10,3 | g/s | |
temperatura dei fumi | 238 | 196 | °C | |
tiraggio (depressione al camino) | 12 | 12 | Pa | |
tubo uscita fumi | Ø 250 | Ø 250 | mm | |
sez. interna canna fumaria solo riscaldamento | Ø 20 / 20x20 | Ø 20 / 20x20 | cm | |
sez. interna canna fumaria tassativa per cottura cibi | Ø 25 / 25x25 | Ø 25 / 25x25 | cm | |
altezza min. canna fumaria | 5 | 5 | m | |
condotti entrata aria | 2 x Ø 15 | 2 x Ø 15 | cm | |
superficie riscaldabile a potenza certificata | 155 | 155 | *mq | |
peso netto | 332 | 334 | kg | |
peso con imballo | 353 | 355 | kg |
Classe Energetica: A+
Livello di prestazione ambientale ««««
