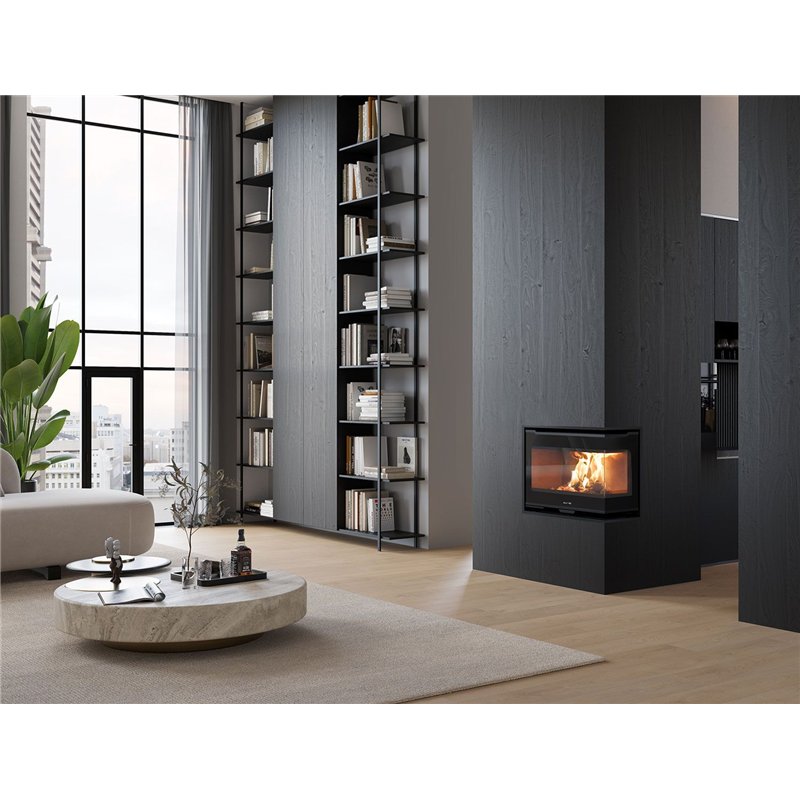

The QUICK CORNER 80 5S DX is the ideal solution for upgrading an existing fireplace into a high‑performance, modern and regulation‑compliant heating system.
Corner design for enhanced flame view
Available in right‑hand (DX) or left‑hand (SX) versions, the corner structure:
Available in two sizes (62 and 80), it adapts to various installation needs.
Versatile installation
CORNER inserts can become full fireplaces with optional adjustable legs. They support:
Suitable for passive houses
Combustion air can be drawn directly from outside, improving indoor air quality and efficiency.
High performance and low emissions
QUICK CORNER 80 5S DX is:
5‑Star certified (DM 186/2017)
Ecodesign compliant
7‑Star Flamme Verte rated
eligible for Conto Termico incentives
A complete and efficient solution for modernizing an existing fireplace.
| Nominal heat output | 11 kW |
| Heat input | 12.7 kW |
| Efficiency min‑max | 81–87% |
| Seasonal efficiency | 77% |
| Dimensions (H×W×D) | 58 × 80 × 47 cm |
| Flue outlet | Ø200 mm |
| Air inlet | Ø100 mm |
| Avg. flue gas temperature | 219 °C |
| Minimum draft | 12 Pa |
| Weight | 127 kg |
| Energy class | A+ |
| IEE index | 116 |
| DM 186 classification | 5 Stars |
| Conto Termico | Yes |
| Ecodesign | Yes |
| FV classification (France) | 7 Stars |
| OiaT (Switzerland) | Yes |
| BlmSchV II (Germany) | Compliant |
| Operation | Natural convection / Forced ventilation |
| Air ducting | Yes |
| Flue outlet position | Top |
| Fuel | Wood |
