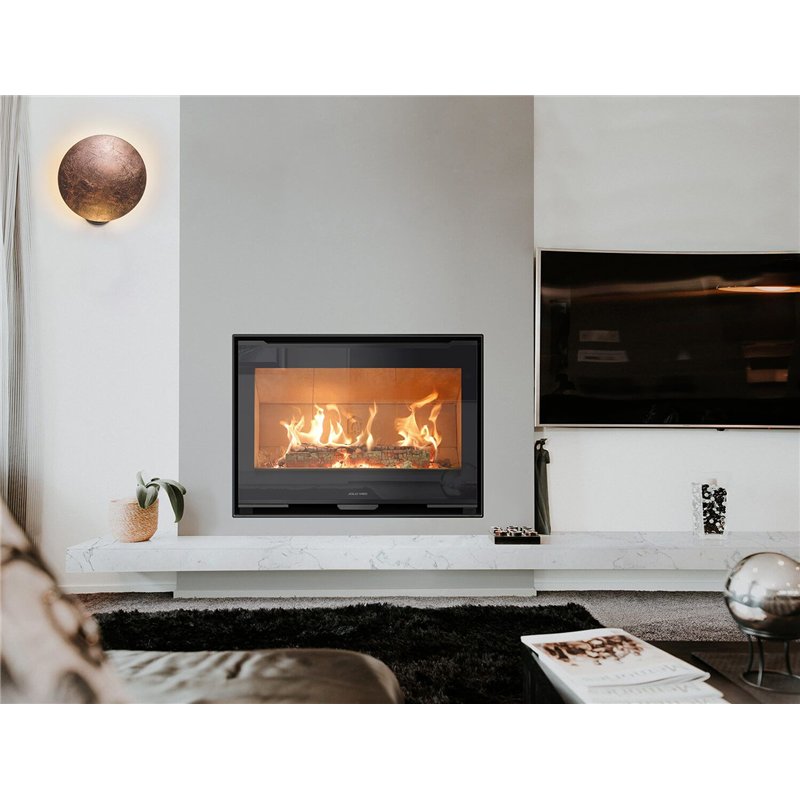

The QUICK 68 5S is part of the QUICK family of wood inserts, engineered to enhance the flame view and upgrade an existing fireplace into a high‑performance heating system.
Enhanced flame view
Its deep and wide firebox ensures:
The QUICK range is available in four sizes: 62, 68, 80 and 89 cm.
Versatile installation
QUICK inserts can become full fireplaces with optional adjustable legs. They support:
Suitable for passive houses
Combustion air can be drawn directly from outside, improving efficiency and indoor air quality.
High performance and low emissions
The 5‑Star version includes a turbulator, which:
The Black Shady glass appears dark when off and becomes transparent during operation.
| Nominal heat output | 10.0 kW |
| Heat input | 11.5 kW |
| Efficiency min‑max | 81–87% |
| Seasonal efficiency | 77% |
| Dimensions (H×W×D) | 58 × 68 × 47 cm |
| Flue outlet | Ø150 mm |
| Air inlet | Ø100 mm |
| Avg. flue gas temperature | 213 °C |
| Minimum draft | 12 Pa |
| Weight | 107 kg |
| Energy class | A+ |
| IEE index | 116 |
| DM 186 classification | 5 Stars |
| Conto Termico | Yes |
| Ecodesign | Yes |
| FV classification (France) | 7 Stars |
| OiaT (Switzerland) | Yes |
| BlmSchV II (Germany) | Compliant |
| Operation | Natural convection / Forced ventilation |
| Air ducting | Yes |
| Flue outlet position | Top |
| Glass | Black Shady |
| Fuel | Wood |
