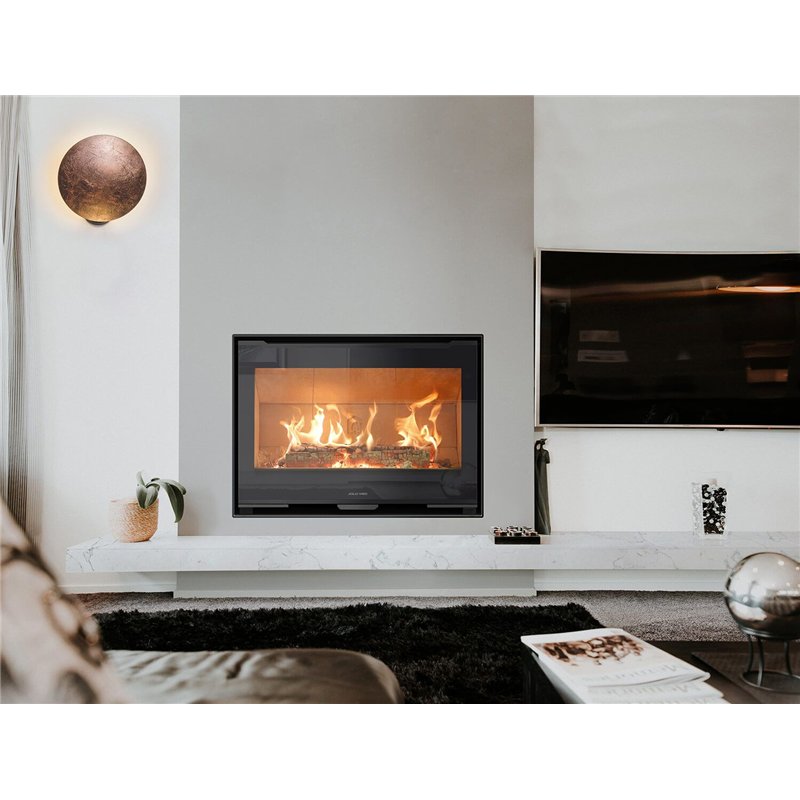

The QUICK 62 5S is engineered to enhance the flame view and upgrade an existing fireplace into a modern, efficient heating system.
Enhanced flame view
Its compact yet deep firebox ensures:
The QUICK range is available in four sizes (62, 68, 80, 89 cm) to meet all space requirements.
Versatile installation
QUICK inserts can become full fireplaces with optional adjustable legs. They support:
Suitable for passive houses
Combustion air can be drawn directly from outside, improving efficiency and indoor air quality.
High performance and low emissions
The 5‑Star version includes a turbulator, which:
The Black Shady glass appears dark when off and becomes transparent during operation.
| Nominal heat output | 8.5 kW |
| Heat input | 9.8 kW |
| Seasonal efficiency | 77% |
| Dimensions (H×W×D) | 50 × 62 × 44 cm |
| Flue outlet | Ø150 mm |
| Air inlet | Ø80 mm |
| Avg. flue gas temperature | 205 °C |
| Minimum draft | 12 Pa |
| Weight | 88 kg |
| Energy class | A+ |
| IEE index | 116 |
| DM 186 classification | 5 Stars |
| Conto Termico | Yes |
| Ecodesign | Yes |
| FV classification (France) | 7 Stars |
| OiaT (Switzerland) | Yes |
| BlmSchV II (Germany) | Compliant |
| Operation | Natural convection / Forced ventilation |
| Air ducting | Yes |
| Flue outlet position | Top |
| Glass | Black Shady |
| Fuel | Wood |
