CONDENSATE DRAIN CAP
STAINLESS STEEL OVAL CHIMNEY - SINGLE WALL
OVAL SYSTEM

OVAL SYSTEM represents the ideal answer in the re-piping and restoration of shafts and technical compartments where the physical construction of the masonry structure prevents the passage of an adequate circular section pipe.

Made entirely of AISI 316L stainless steel with BA finish, it guarantees the highest performance and resistance to acid condensation.
The whole OVAL INOX line is certified according to the European EN-
1856-2: 2009 and is guaranteed for 10 years

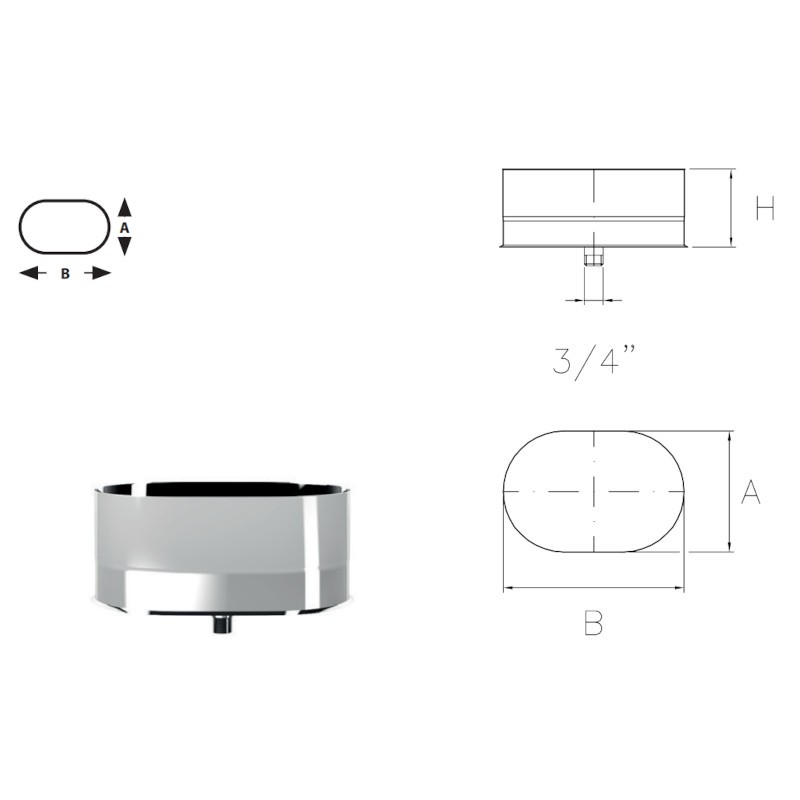

The condensate drain plug is installed at the base of the flue and allows the collection and disposal of condensate

Designation: Chimney system EN 1856
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket)
Corrosion resistance class: Vm
Material type and thickness: AISI 316 L BA steel sp.0.5

Ø n mm = nominal aeraulic diameter, i.e. equivalent to a round section pipe

Delivery terms: 1 week

Certification CE

Warranty: 10 Years
