REDUCTION
COPPER FLUE - DOUBLE WALL
COPPER ISOAIR SYSTEM

IsoAIR COPPER is the air insulated double wall flue system with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency, durability and aesthetic appeal
The absence of insulation reduces the overall dimensions to just 2 cm more than the nominal diameter of the internal smoke duct
Mechanical joint with locking collar and sealing gasket, practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa and operating temperatures up to 200 ° C (traditional or condensing gas boilers, pellet stoves and boilers, kitchen and extractor hoods, and so on).
The whole ISOAIR COPPER line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years

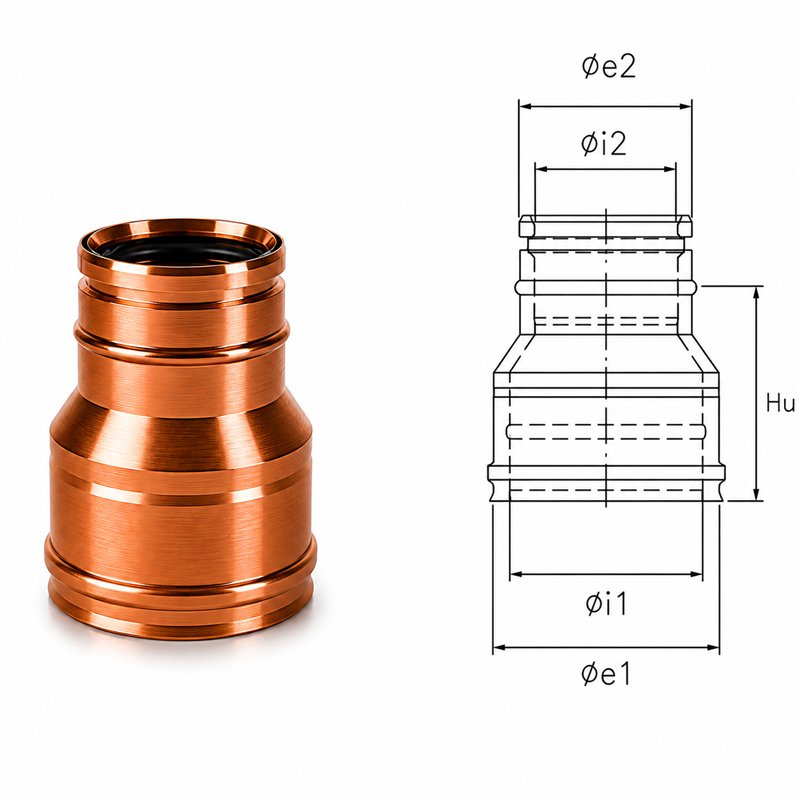

The reduction is a fitting that allows the passage to the lower measuring diameter

The male part has the largest diameter and the female part has the smallest diameter

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with gasket)
Pressure class: P1 (with gasket)
Condensation resistance: W.
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: L50040 / 50 Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel

IMPORTANTE ::. Come ordinare :

- scegliere nelle opzioni IL DIAMETRO MAGGIORE (MASCHIO)

- specificare nelle opzioni IL DIAMETRO MINORE (FEMMINA)

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni

NON VENDIBILE CON PAGAMENTO CONTRASSEGNO

ARTICOLO SPECIALE REALIZZATO SU MISURA - NON RESTITUIBILE
