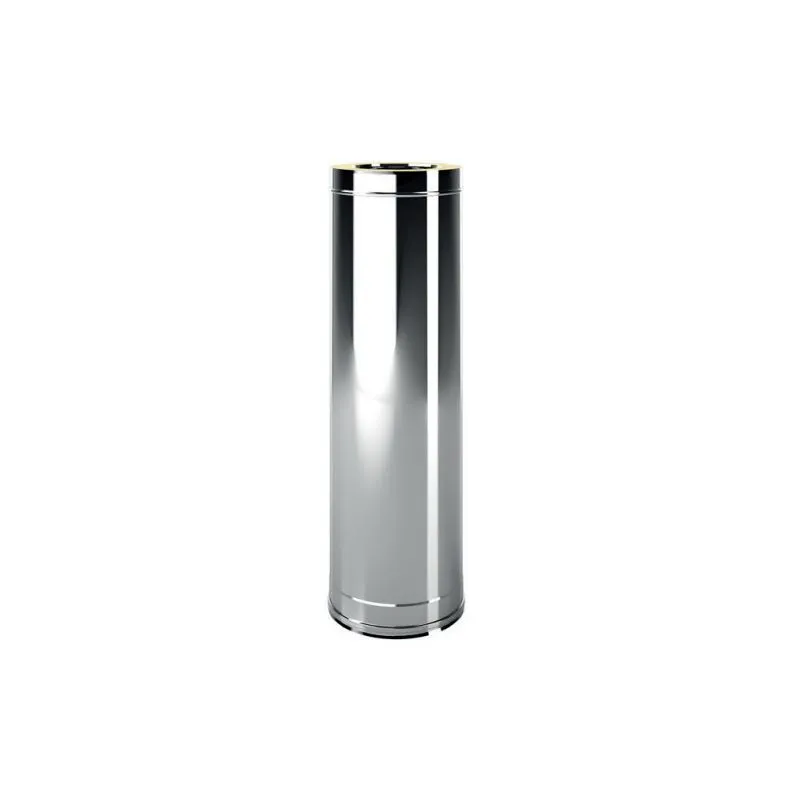

Double wall flue ISO50 INOX - I5T5 De Marinis 0.5 meter pipe
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
LINEAR ELEMENT LENGTH MM.500
STAINLESS STEEL CHIMNEY - INSULATED DOUBLE WALL
ISO50 STAINLESS STEEL SYSTEM
Iso50 INOX is the double-walled flue system insulated with 50mm of high-density mineral wool, with an internal wall in AISI 316 stainless steel and an external wall in AISI304BA stainless steel; the ideal choice for installations in combination with generators with high fume outlet temperatures or near materials that are easily flammable by contact
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C
The entire ISO 50 INOX line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years
The 500 mm straight element is used to create horizontal or vertical sections
Designation: Chimney system EN 1856-1:2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensate resistance: W (with gasket) - D (without gasket)
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel
| Cod. | Øi | Øe | Hu | I | |
|---|---|---|---|---|---|
| Acciaio Inox | I5T580 | 80 | 180 | 445 | 45 |
| Acciaio Inox | I5T5100 | 100 | 200 | 445 | 45 |
| Acciaio Inox | I5T5130 | 130 | 230 | 445 | 45 |
| Acciaio Inox | I5T5150 | 150 | 250 | 445 | 45 |
| Acciaio Inox | I5T5180 | 180 | 280 | 445 | 45 |
| Acciaio Inox | I5T5200 | 200 | 300 | 445 | 45 |
| Acciaio Inox | I5T5250 | 250 | 350 | 445 | 45 |
| Acciaio Inox | I5T5300 | 300 | 400 | 445 | 45 |
| Acciaio Inox | I5T5350 | 350 | 450 | 445 | 45 |
| Acciaio Inox | I5T5400 | 400 | 500 | 445 | 45 |
| Acciaio Inox | I5T5450 | 450 | 550 | 445 | 45 |
| Acciaio Inox | I5T5500 | 500 | 600 | 445 | 45 |
| Acciaio Inox | I5T5550 | 550 | 650 | 445 | 45 |
| Acciaio Inox | I5T5600 | 600 | 700 | 445 | 45 |
| Acciaio Inox | I5T5650 | 650 | 750 | 445 | 45 |
Termini consegna materiale : 1 settimana
Certificazione : KIWA
Garanzia: 10 Anni
