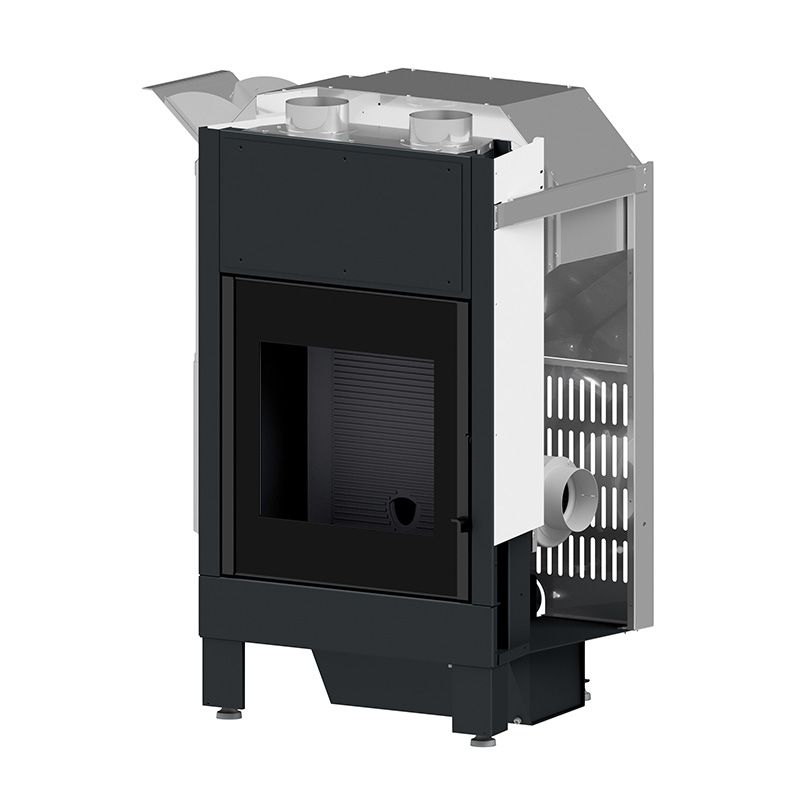

Caminetti Montegrappa MB14S - Pellet fireplace with square door entirely in ceramic glass, which can be opened like a wing. Available with pellet loading on the right and left.
Buy with confidence
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy
(edit with the Customer Reassurance module)
Pellet fireplace MB14S with natural convection, ductable
size 82x122x62cm
Pellet fireplace with square door entirely in ceramic glass, which can be opened as a wing.
Combustion chamber lined with cast iron.
Touch screen control panel.
Available with pellet loading on the right and left.
The equipment of the monobloc includes:
- 1 control panel on wall housing box and 6 m connection cable
- 1 piece of flexible aluminum tube Ø 12 cm extendable up to 150 cm for air inlet
- 2 pieces of flexible aluminum tube Ø 12 cm extendable up to 150 cm for hot air outlet
- 1 PVC grille for complete external air intake protection Ø 12 cm
- 2 hoppers in painted sheet steel for hot air outlet nozzles Ø 12 cm
- 2 adjustable vents in white painted aluminum for hot air outlet
- 5 universal hose clamps (60/170 mm)
- 1 door opening and closing tool
- 1 brush at 90° for cleaning the combustion chamber
- 1 power cord
| Classe di qualità (D.M. 186 - 7/11/2017) |  |
||
| potenza termica globale (al focolare) | 13,1 | kW | |
| potenza certificata | 4,5 - 12,0 | kW | |
| CO misurato (al 13% di ossigeno) | ≤ 0,0082 | % | |
| rendimento | ≥ 91,3 | % | |
| consumo combustibile | 1,04 - 2,76 | kg/h | |
| portata in massa dei fumi | 6,7 - 9,2 | g/s | |
| temperatura dei fumi | 81 -138 | °C | |
| tiraggio (depressione al camino) | 11 | Pa | |
| capacità serbatoio | 50 | Kg | |
| autonomia | 48 - 18 | h | |
| superficie riscaldabile a potenza certificata | 138 | *mq | |
| peso netto | 158 | kg | |
| peso con imballo | 178 | kg | |
Classe Energetica: A+
Livello di prestazione ambientale ««««
