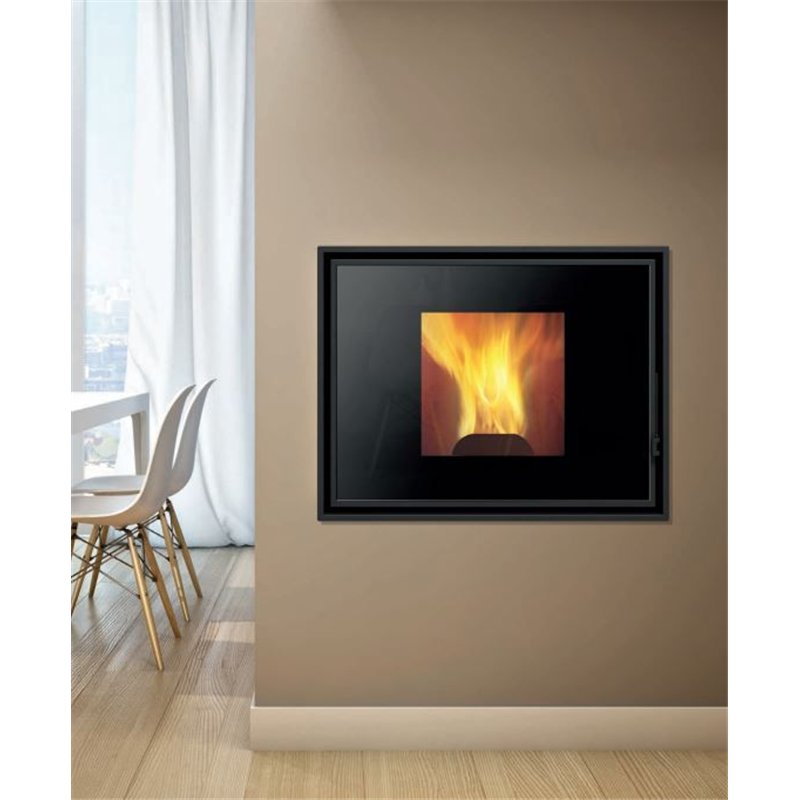

Pellet fireplace MB PELLET W ESSENTIAL O

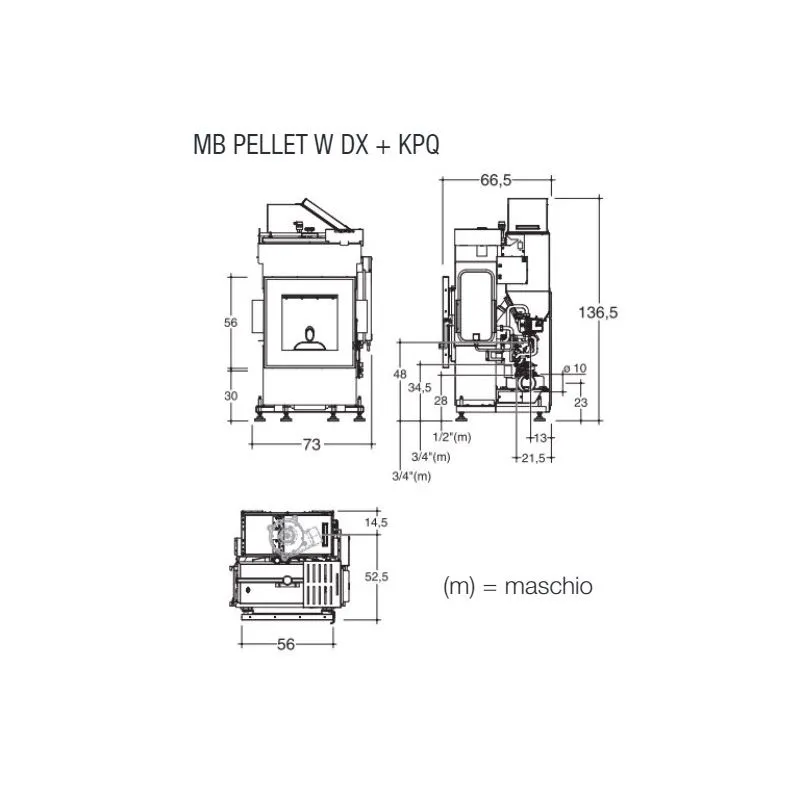

size 79x59(98)x71cm
Pellet fireplace for heating and producing hot water.
Equipped with square door
Right or left pellet loading
The monobloc includes the following equipment:
1 control panel on wall housing box with finishing plate and 6 m connection cable.
1 hydraulic kit for heating - 1 bend 25° Ø10 (only MB Pellet W Dx) - 1 U-bolt (only MB Pellet W Dx)
The necessary control, protection, safety and expansion devices are not supplied, to be implemented on the system by the installer
MB PELLET W 19 | MB PELLET W 23 | MB PELLET W 27 | |||
Classe di qualità (D.M. 186 - 7/11/2017) | |||||
potenza certificata | 4,5 - 19,0 | 6,0 - 23,5 | 6,5 - 27,0 | kW | |
potenza resa all'ambiente | 2,0 - 4,0 | 2,0 - 4,5 | 2,5 - 4,0 | kW | |
potenza resa all'acqua | 2,5 - 15,0 | 4,0 - 19,0 | 4,0 - 23,0 | kW | |
CO misurato (al 13% di ossigeno) | ≤ 0,02 | ≤ 0,02 | ≤ 0,02 | % | |
rendimento | ≥ 90,0 | ≥ 90,0 | ≥ 90,0 | % | |
consumo combustibile | 0,9 - 4,4 | 1,4 - 5,5 | 1,4 - 6,4 | kg/h | |
portata in massa dei fumi | 6,4 - 14,0 | 8,1 - 15,8 | 8,6 - 16,1 | g/s | |
temperatura dei fumi | 63 - 123 | 73 - 134 | 76 - 144 | °C | |
tiraggio (depressione al camino) | 12 | 12 | 12 | Pa | |
capacità serbatoio | 40 | 40 | 40 | Kg | |
autonomia | 44 - 9 | 28,5 - 7 | 28,5 - 6 | h | |
tubo uscita fumi | Ø 100 | Ø 100 | Ø 100 | mm | |
ingresso aria per la combustione | Ø 60 | Ø 60 | Ø 60 | mm | |
superficie riscaldabile a potenza certificata | 218 | 270 | 310 | *mq | |
peso netto | 195 | 195 | 195 | kg | |
peso con imballo | 213 | 213 | 213 | kg |
Classe Energetica: A+
Livello di prestazione ambientale ««««
