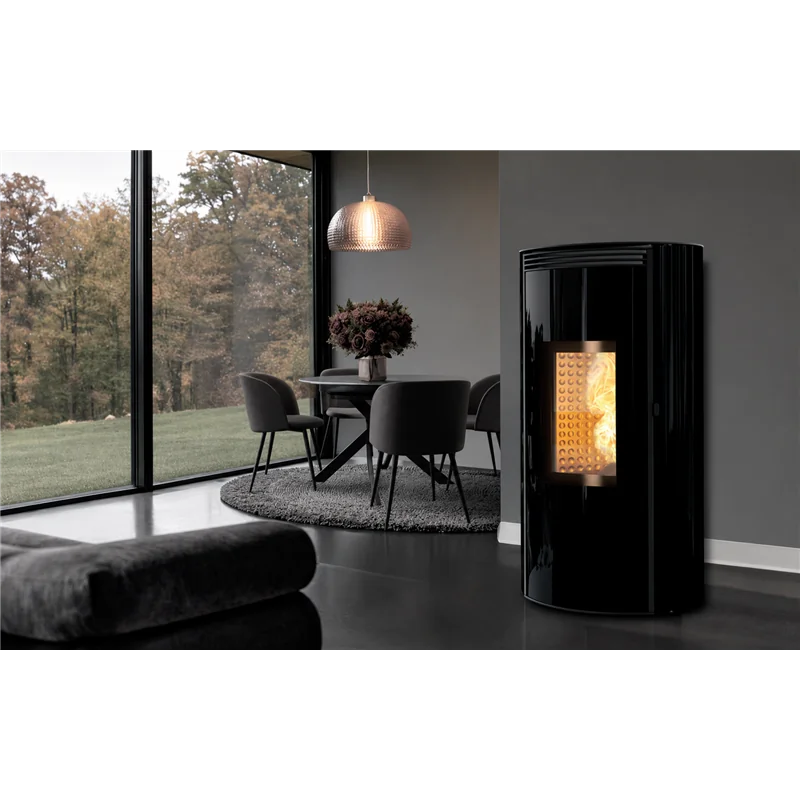

CUMA GLASS EVO NES 10 EVO Hermetic Air-Convection Pellet Stove
W 40 x D 42 x H 109 cm

Cuma Glass Evo is a stove with a contemporary and essential design, designed to enhance any space with elegance and character. The frame and lid are made of black painted steel, a simple and refined finish that guarantees strength and durability. The black screen-printed tempered glass sides give the stove a modern and bright look, creating a pleasant interplay of reflections and depth. The front door, also made of black screen-printed tempered glass, is designed to provide ample visibility of the fire, transforming the flame into a true decorative element. CUMA GLASS EVO combines quality materials, attention to detail, and a clean aesthetic, offering not only heat but also a strong visual impact, ideal for those seeking a functional stove with a sophisticated design.

• Airtight, certified for passive houses, studios, and bedrooms
• SMART ventilation: advanced software for intelligent fan management
• Backlit control panel with digital touchscreen icons
• Modern removable cast iron back panel
• Cylindrical cast iron burner with flame deflector
• Intuitive software with STANDBY function
• Chronothermostat with adjustable temperature and power
• Ignition tube inserted inside the burner
• TUTOR efficient combustion control system
• Continuously rotating gear motor
• Tangential air fan
• Fire grate
• Removable ash drawer
• Adjustable non-slip feet for proper leveling
• Wi-Fi module (optional)

Classe di qualità (D.M. 186 - 7/11/2017)
Potenza termica globale (al focolare)	10,1		kW
Potenza certificata	3,1 - 9,1		kW
CO misurato (al 13% di ossigeno)	0,0070		%
Rendimento (η)	90		%
Particolato Primario (PP) al 13% di ossigeno	14		mg/Nm3
COT (al 13% di ossigeno)	2		mg/Nm3
Consumo combustibile	0,69 - 2,14		kg/h
Portata in massa dei fumi	3,0 - 6,3		g/s
Temperatura dei fumi	77 - 178		°C
Tiraggio (depressione al camino)	7		Pa
Capacità serbatoio	16,5		Kg
Autonomia	23,5 - 7,5		h
Tubo uscita fumi	Ø 80		mm
Ingresso aria per la combustione	Ø 60		mm
Superficie riscaldabile a potenza certificata	104		*mq
Peso netto - Peso con imballo	76 - 88		kg

Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
