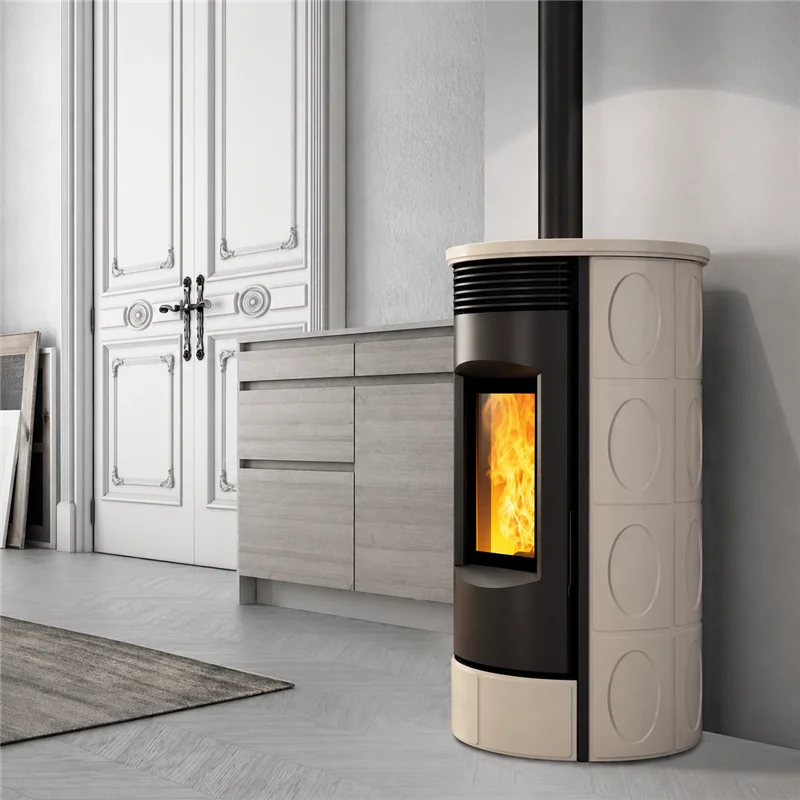

Montegrappa EVOCA EVO NIS - Hot air pellet stove with integrated upper smoke outlet with intelligent SMART ventilation. Evoca adapts easily to both environments furnished in a classic style and to more modern ones. The sides, the top and the plinth are covered in majolica. The sides are engraved with an elegant oval pattern.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Air pellet stove with integrated vented upper smoke outlet EVOCA EVO NIS 9 EVO WIFI
L 59 x P 58.5 x H 109 cm
Round shape and refined design, Evoca easily adapts to both environments furnished in a classic style and to more modern ones. The sides, the top and the plinth are covered in majolica. The sides are engraved with an elegant oval pattern. The splay emphasizes the silk-screened glass and the wide view of the fire. Evoca has a steel structure and majolica cladding, and is available in three colors: glossy white, cream, glossy burgundy.
comfort.
- Standard Wi-Fi module
- Control panel equipped with backlit graphic display with TOUCH SCREEN digital icons
- Cylindrical cast iron burner equipped with flame deflector
- Intuitive software with setting of both the ambient temperature and the maximum operating power. Equipped with STAND BY function to maintain the desired comfort of the internal environment
- Chronothermostat with settable temperature and with the possibility of choosing the operating power of each programmed time slot
| potenza termica globale (al focolare) | 9,3 | kW | |
| potenza certificata | 3,8 - 8,6 | kW | |
| CO misurato (al 13% di ossigeno) | 0,0027 | % | |
| rendimento | 92,1 | % | |
| consumo combustibile | 0,83 - 1,94 | kg/h | |
| portata in massa dei fumi | 3,1 - 6,2 | g/s | |
| temperatura dei fumi | 63 - 135 | °C | |
| tiraggio (depressione al camino) | 7 | Pa | |
| capacità serbatoio | 18 | Kg | |
| autonomia | 21,5 - 9 | h | |
| tubo uscita fumi | Ø 80 | mm | |
| ingresso aria per la combustione | Ø 60 | mm | |
| superficie riscaldabile a potenza certificata | 98 | *mq | |
| peso netto | 78 | kg | |
Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
Data sheet
