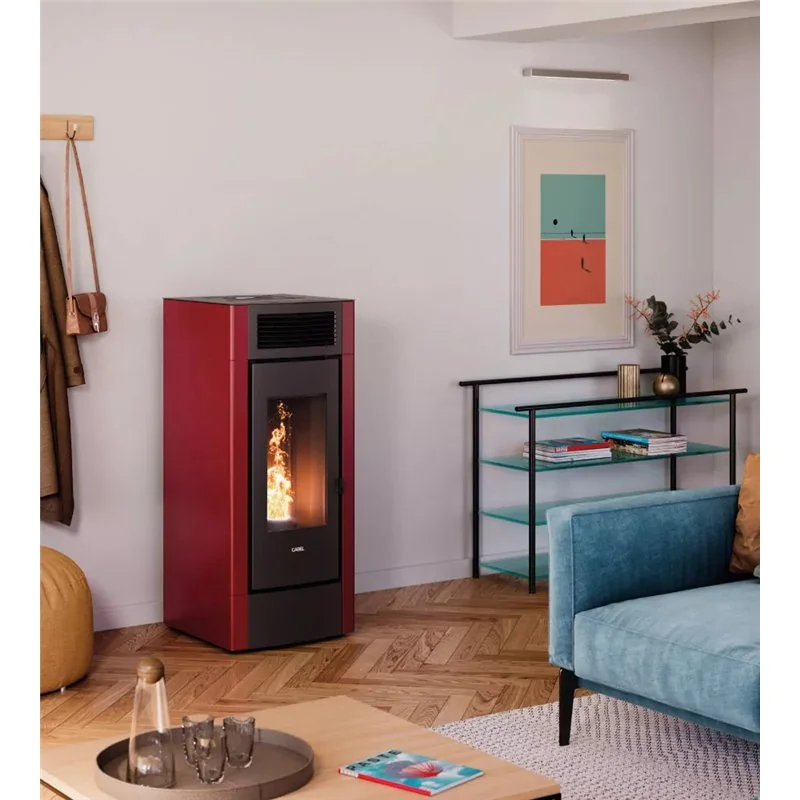

Cadel Cristal Plus 9: 8.5 kW ductable pellet stove
Cadel Cristal Plus 9 is an 8.5 kW ductable pellet stove designed to distribute heat both in the room where the stove is installed and in an additional room through a hot-air ducting system.
Its compact design features a distinctive bevelled and curved cast-iron door that frames the wide flame view. The combustion chamber also features a cast-iron back, while front ventilation provides direct heating for the main room.
Key technologies include GoFast ceramic ignition, Flexit for greater flue installation flexibility and integrated Wi-Fi and Bluetooth for control via the Easy Connect Plus app.
Why choose Cadel Cristal Plus 9
- 8.5 kW nominal heat output.
- Ductable hot-air system to heat an additional room.
- Bevelled and curved cast-iron door.
- Combustion chamber with cast-iron back.
- GoFast ceramic ignition.
- Flexit installation technology.
- Integrated Wi-Fi and Bluetooth.
- Easy Connect Plus smartphone control.
- 20 kg pellet hopper.
- A+ energy class.
Ducted heating for an additional room
The main difference between Cristal Plus 9 and a conventional ventilated pellet stove is its ability to duct part of the hot air to another room.
This makes it particularly useful in homes where two nearby areas can be heated from a single appliance rather than concentrating all available heat in the room where the stove is installed.
The hot-air duct connection has a diameter of Ø 80 mm. An optional top ducting kit is also available to provide greater installation flexibility.
Cast-iron door and combustion chamber
Cristal Plus 9 features a distinctive bevelled and curved cast-iron door that gives the front of the stove a strong visual identity and enhances the view of the flame.
The combustion chamber also features a cast-iron back, a material well suited to the high temperatures generated during stove operation.
GoFast ceramic ignition
GoFast uses a ceramic glow plug designed to ignite pellets more quickly than a conventional metal heating element.
The ceramic element also provides improved resistance to oxidation and corrosion.
Flexit installation technology
Flexit technology provides greater flexibility when connecting the stove to the flue system.
The flue can be connected at the rear or configured for a top connection using the dedicated optional accessories. A top connection can help reduce visible pipework behind the stove and simplify certain installation layouts.
Wi-Fi, Bluetooth and Easy Connect Plus
Cadel Cristal Plus 9 features integrated Wi-Fi and Bluetooth and can be controlled through the Easy Connect Plus smartphone app.
The app provides access to the main stove functions, including operating schedules, ignition, shutdown and desired temperature settings.
How much space can Cadel Cristal Plus 9 heat?
The declared indicative heating volume ranges from approximately 98 to 238 m³.
The actual volume that can be heated depends on building insulation, climate zone, room height, exposure and actual heat loss. Correct stove sizing should therefore always be based on the characteristics of the property.
Cadel Cristal Plus 9 technical specifications
| Brand | Cadel |
| Model | Cristal Plus 9 |
| Certificate model name | CRISTAL PLUS 9 T2 |
| Type | Ventilated and ductable pellet stove |
| Fuel | Pellets |
| Nominal output | 8.5 kW |
| Minimum output | 3.2 kW |
| Efficiency | 87 - 90%* |
| Indicative heating volume | 98 - 238 m³ |
| Pellet hopper capacity | 20 kg |
| Pellet consumption | 0.7 - 1.9 kg/h |
| Indicative operating time | 11 - 29 hours |
| Flue outlet | Ø 80 mm |
| Combustion air inlet | Ø 60 mm |
| Hot-air duct outlet | Ø 80 mm |
| Width | 47 cm |
| Depth | 49.5 cm |
| Height | 110.5 cm |
| Weight | 95 kg |
| Dust emissions | 7 mg/Nm³* |
| Energy class | A+ |
| Door | Bevelled and curved cast iron |
| Combustion chamber | Cast-iron back |
| Ignition | GoFast ceramic glow plug |
| Installation technology | Flexit |
| Connectivity | Integrated Wi-Fi and Bluetooth |
| App control | Easy Connect Plus |
* Indicative value pending final certification.
Installation, flue and ducting connections
Cadel Cristal Plus 9 uses an Ø 80 mm flue outlet, an Ø 60 mm combustion air inlet and an Ø 80 mm hot-air duct connection.
Optional accessories are available for top flue connection, top concentric flue connection and top hot-air ducting, providing greater flexibility when adapting the stove to the installation.
Installation must be carried out by qualified personnel in accordance with current regulations, the manufacturer's instructions and the characteristics of the chimney system.
