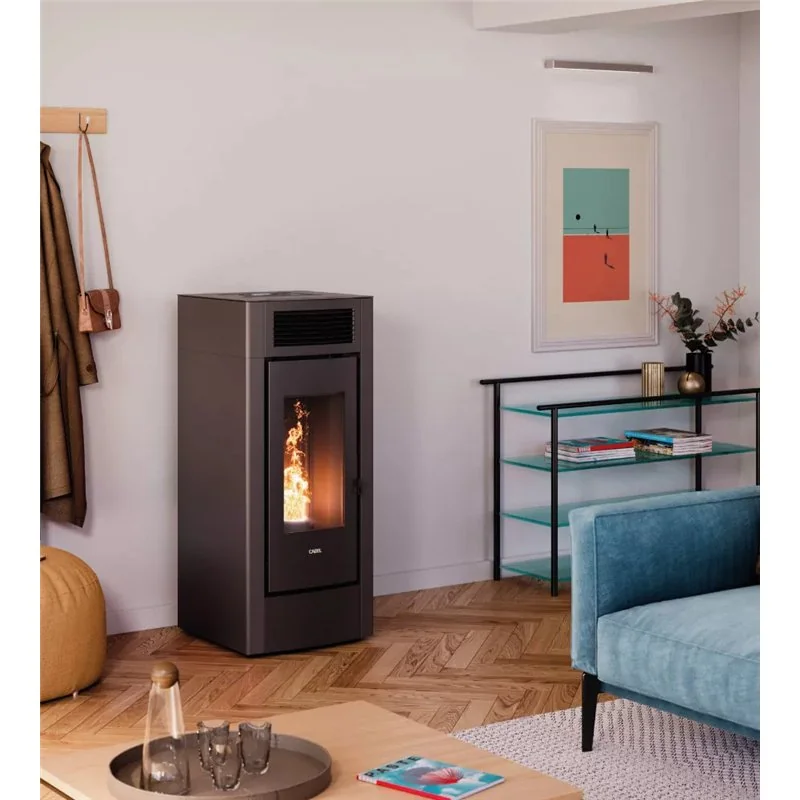

Cadel Cristal Plus 9 Autoclean is an 8.5 kW ductable pellet stove with an Autoclean automatic brazier, designed to distribute heat to an additional room while reducing routine cleaning. It features a bevelled and curved cast-iron door, cast-iron combustion chamber back, GoFast ceramic ignition, Flexit installation technology and integrated Wi-Fi and Bluetooth. A+ energy class.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Cadel Cristal Plus 9 Autoclean is an 8.5 kW ductable pellet stove designed to combine multi-room heating with easier everyday maintenance thanks to its Autoclean automatic brazier.
The ducting system allows part of the hot air to be distributed to an additional room, while front ventilation provides direct heating for the main room where the stove is installed.
Key technologies include GoFast ceramic ignition, Flexit installation technology and integrated Wi-Fi and Bluetooth for control through the Easy Connect Plus app.
The Autoclean system automatically cleans the brazier and reduces the frequency of manual maintenance.
The brazier rotates on its axis, allowing ash to fall into the compartment below. Depending on use, routine brazier cleaning can therefore be reduced from daily to approximately weekly or even less frequently.
Cristal Plus 9 Autoclean can duct part of the hot air to another room through a dedicated hot-air connection.
The duct outlet has a diameter of Ø 80 mm, and an optional top ducting kit is available for greater installation flexibility.
The stove features a distinctive bevelled and curved cast-iron door, designed to enhance both the appearance of the front panel and the view of the flame.
The combustion chamber also features a cast-iron back, suitable for the high temperatures generated during operation.
GoFast uses a ceramic glow plug designed to provide faster pellet ignition than a conventional metal heating element.
The ceramic element also provides improved resistance to oxidation and corrosion.
Flexit technology provides greater flexibility when connecting the stove to the flue system.
The flue can be connected at the rear or configured for a top outlet using the dedicated optional accessories, including a top concentric flue kit.
Cadel Cristal Plus 9 Autoclean features integrated Wi-Fi and Bluetooth and can be controlled through the Easy Connect Plus smartphone app.
The app provides access to the main stove functions, including ignition, shutdown, operating schedules and temperature settings.
The indicative heating volume ranges from approximately 98 to 238 m³.
The actual volume that can be heated depends on building insulation, climate zone, room height, exposure and actual heat loss. Correct stove sizing should therefore always be based on the characteristics of the property.
| Brand | Cadel |
| Model | Cristal Plus 9 Autoclean |
| Certificate model name | CRISTAL PLUS 9 T2 |
| Type | Ventilated and ductable pellet stove |
| Fuel | Pellets |
| Nominal output | 8.5 kW |
| Minimum output | 3.2 kW |
| Efficiency | 87 - 90%* |
| Indicative heating volume | 98 - 238 m³ |
| Pellet hopper capacity | 20 kg |
| Pellet consumption | 0.7 - 1.9 kg/h |
| Indicative operating time | 11 - 29 hours |
| Flue outlet | Ø 80 mm |
| Combustion air inlet | Ø 60 mm |
| Hot-air duct outlet | Ø 80 mm |
| Width | 47 cm |
| Depth | 49.5 cm |
| Height | 110.5 cm |
| Weight | 95 kg |
| Dust emissions | 7 mg/Nm³* |
| Energy class | A+ |
| Automatic brazier | Autoclean |
| Door | Bevelled and curved cast iron |
| Combustion chamber | Cast-iron back |
| Ignition | GoFast ceramic glow plug |
| Installation technology | Flexit |
| Connectivity | Integrated Wi-Fi and Bluetooth |
| App control | Easy Connect Plus |
* Indicative value pending final certification.
Cadel Cristal Plus 9 Autoclean uses an Ø 80 mm flue outlet, an Ø 60 mm combustion air inlet and an Ø 80 mm hot-air duct outlet.
Optional accessories are available for top ducting, top flue connection and top concentric flue connection.
Installation must be carried out by qualified personnel in accordance with current regulations, the manufacturer's instructions and the characteristics of the chimney system.
