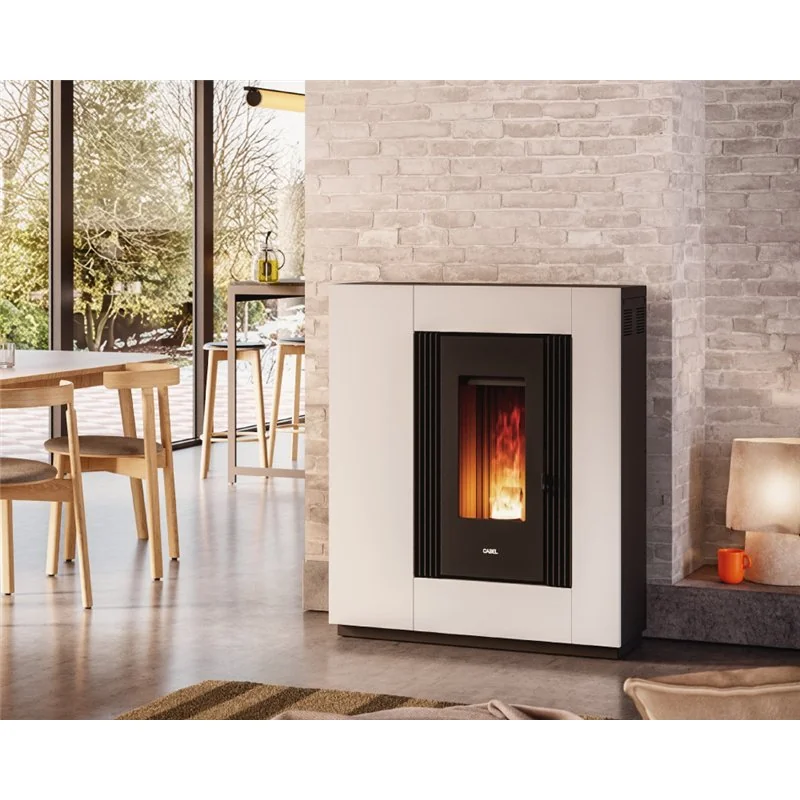

Cadel Vesta Plus 11 Autoclean: 10 kW slim ductable pellet stove

Cadel Vesta Plus 11 Autoclean is a 10 kW ductable pellet stove designed to provide strong heating performance in a particularly shallow format.

With a depth of only 33 cm, it is particularly suitable for corridors, passage areas and rooms where a conventional deeper pellet stove would take up too much space.

Key features include the Autoclean automatic brazier, dual hot-air ducting, Flexit installation technology and optional ZoneControl for more advanced multi-room heating management.

Why choose Cadel Vesta Plus 11 Autoclean

• 10 kW nominal heat output.
• Only 33 cm deep.
• Autoclean automatic brazier.
• Dual hot-air ducting.
• Rear, top or side ducting configuration.
• Flexit installation technology.
• Optional ZoneControl for different temperatures in different rooms.
• A+ energy class.

Only 33 cm deep

One of the main advantages of Vesta Plus 11 is its slim design. At only 33 cm deep, the stove can be installed in areas where available depth is limited.

This compact format combines reduced projection from the wall with a 10 kW nominal heat output and multi-room ducted heating capability.

Autoclean automatic brazier

The Autoclean system is designed to reduce routine brazier cleaning.

The brazier rotates on its axis, allowing ash to fall into the compartment below. Depending on use, routine cleaning can therefore be reduced from daily to approximately weekly or even less frequently.

Dual ducting for multi-room heating

Vesta Plus 11 features dual hot-air ducting, allowing heat to be distributed to additional rooms.

The ducting can be configured at the rear, top or side, providing considerable flexibility when designing the heating system.

This makes it possible to use a single heat generator to distribute warm air to several areas of the home where the layout and installation allow it.

Optional ZoneControl

Vesta Plus 11 can be equipped with ZoneControl, allowing different temperatures to be set in the rooms served by the ducting system.

Independent thermostats can regulate the distribution of warm air to each zone, helping improve comfort and avoid overheating rooms that require less heat.

Flexit installation technology

Flexit technology provides greater flexibility when connecting the stove to the flue system.

This is particularly useful with a slim stove, where reducing both the stove projection and visible pipework can help achieve a cleaner installation.

How much space can Cadel Vesta Plus 11 heat?

The indicative heating volume ranges from approximately 84 to 280 m³.

The actual volume that can be heated depends on building insulation, climate zone, room height, exposure and actual heat loss. Correct stove sizing should therefore always be based on the characteristics of the property.

Cadel Vesta Plus 11 Autoclean technical specifications

* Indicative value pending final certification.

Installation and ducting

Cadel Vesta Plus 11 uses an Ø 80 mm flue outlet, an Ø 60 mm combustion air inlet and Ø 80 mm hot-air duct connections.

Rear, top or side ducting options provide considerable flexibility when adapting the stove to the heating system.

Installation must be carried out by qualified personnel in accordance with current regulations, the manufacturer's instructions and the characteristics of the chimney system.
