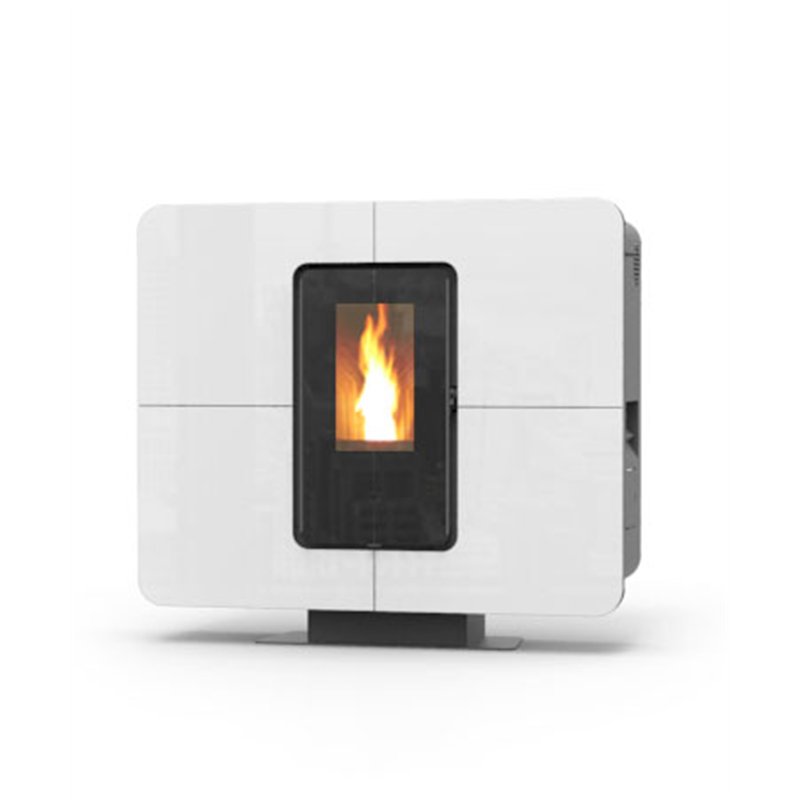

Thermorossi SLIM QUARO IDRA pellet stove

The Slim Quadro IDRA hydrostove by Thermorossi is a pellet appliance that combines heating functionality with an exclusive design.

Design and Functionality: The Slim Quadro IDRA changes the boundaries between spaces and functions, transforming the stove into a "furniture" to be inserted freely or a picture to hang thanks to its patented design. It is available in different finishes, including colored crystal, Moondecor and Sundecor.
Self-Cleaning Burner: The stove is equipped with a patented self-cleaning burner with Pelletpower® technology. This system ensures constant yields without interruptions and minimizes fuel waste.
Control Screen: The LCD digital panel offers an easy-to-use interface for weekly programming with three independent daily settings.
Safety: It has a mechanical safety pressure switch, a cast iron door and a large silk-screened ceramic glass. Furthermore, it is equipped with an ash drawer and a removable handle.
Power Management: Power can be managed manually or automatically via modulation.
THERMOCONTROL function: This function allows the management of two probes to set the minimum and maximum temperature of an inertial tank (such as the Thermopuffer) or of a stratification storage with domestic hot water production and provision for solar thermal (Thermocell).
DHW SUMMER and THERMO ACS functions: The stove can manage a summer/winter boiler through a probe and also has a room thermostat function (T.AMBIENT) through another probe.
Slim Quadro IDRA is an elegant solution for home heating, with an eye to safety and energy efficiency

DIMENSIONI (HXLXP)	992X1109X319
PESO (KG)	165
AREA RISCALDABILE (M²)	120
RENDIMENTO MAX	95,5 %
POTENZA AL FOCOLARE (KW)	4,9 - 14,3
POTENZA NOMINALE (KW)	4,7 - 13,3
POTENZA ALL'ACQUA (KW)	4,1 - 11,9
IRRAGGIAMENTO (KW)	0,6 - 1,5
CONSUMO ORARIO PELLET (KG/H)	1,1 - 3,1
ARIA PRIMARIA DA ESTERNO	SI
CIRCOLATORE IMPIANTO	SI
VASO D'ESPANSIONE	SI
VALVOLA DI SOVRA PRESSIONE	SI
ASSORBIMENTO ELETTRICO	90-340W
RUMOROSITA'	36dB
EMISSIONI CO (MG/M³; 13% DI O2)	61,5
CAPACITA' SERBATOIO	18 KG
EMISSIONI POLVERI (MG/M³; 13% DI O2)	12,6
DIAMETRO USCITA FUMI (MM)	80
TIRAGGIO MINIMO RICHIESTO (PA)	-10
TIRAGGIO MINIMO PER CALCOLI DIMENSIONAMENTO CANNA FUMARIA (PA)	-5





Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
