Wooden roof passage SAFE system for stainless steel flue
  • Wooden roof passage SAFE system for stainless steel flue
  • Wooden roof passage SAFE system for stainless steel flue
  • Wooden roof passage SAFE system for stainless steel flue

Wooden roof passage SAFE system for stainless steel flue

UATS080

Wooden roof passage SAFE system for stainless steel flue

Finitura
Attacco
Diametro
€830.00
€664.00 Save 20%
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description

SAFE SYSTEM
STAINLESS STEEL CHIMNEY
DOUBLE INSULATED WALL
FOR ROOF PASSAGE OR SLABS IN COMBUSTIBLE MATERIAL

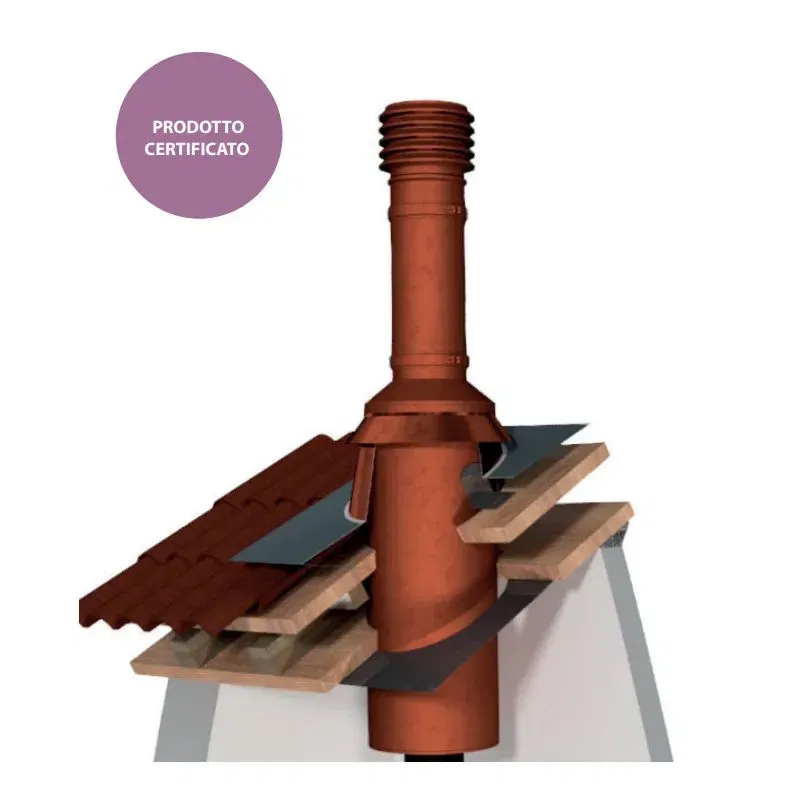

The "SAFE" system of De Marinis can be classified as a real safety accessory, whose function is to prevent overheating and / or fire in combustible materials (wooden beams, grafts, beads, etc.) adjacent to the specific place installation of the complete flue system (min.10mm)

When to use:
The SAFE is certified for continuous use with a smoke temperature of 600 ° C, which translates into a laboratory test carried out at 1000 ° C. In addition to the certainty of performance, documented by specific tests carried out at the Giordano Institute of Bellaria (RN), the "Safe" element differs from most of the products on the market: in fact it is not a pass-through protection (De Marinis article " PASS-THROUGH "), installed outside an existing system (eg ISO 25 system), but of a completely integrated and independently certified article, placed inside a smoke system, in accordance with the Technical Regulations (UNI 10683: 2012) and the laws (Legislative Decree 128/10) in force.
How to install:
Make a hole in the cover with a diameter equal to the external diameter of the system + 20 mm. Position the SICURO perfectly in the center of the hole, adjusting the fixing tabs according to the slope of the pitch and the thickness of the covering surface. Finish by installing the appropriate flashing and flashing.
The SAFE system, thanks to the exclusive universal and telescopic connection, allows the installation of the generator in a perfectly coaxial way with it, without any effort.

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Aisi 316 stainless steel internal wall - Aisi 304BA stainless steel external wall

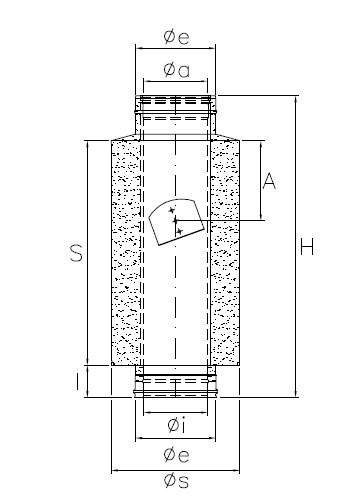

  Cod. Øi Øe Øa Øs H S A B I
Acciaio Inox UATS080 80 130 80 280 940 700 150 50 100
Acciaio Inox UATS100 100 150 100 300 940 700 150 50 100
Acciaio Inox UATS130 130 180 130 350 940 700 150 50 100
Acciaio Inox UATS150 150 200 150 350 940 700 150 50 100
Acciaio Inox UATS180 180 230 180 400 940 700 150 50 100
Acciaio Inox UATS200 200 250 200 400 940 700 150 50 100
Acciaio Inox UATS250 250 300 250 450 940 700 150 50 100
Acciaio Inox UATS300 300 350 300 500 940 700 150 50 100



Termini consegna materiale : 1 settimana


Marcatura CE

Garanzia: 10 Anni



Scarica la scheda tecnica in formato PDF



Product Details
UATS080

Specific References

MPN
UATS
Attachments
Download
SICURO DOP

SICURO DOP

Download (118.22KB)
SICURO Scheda tecnica

SICURO Scheda tecnica

Download (62.24KB)
