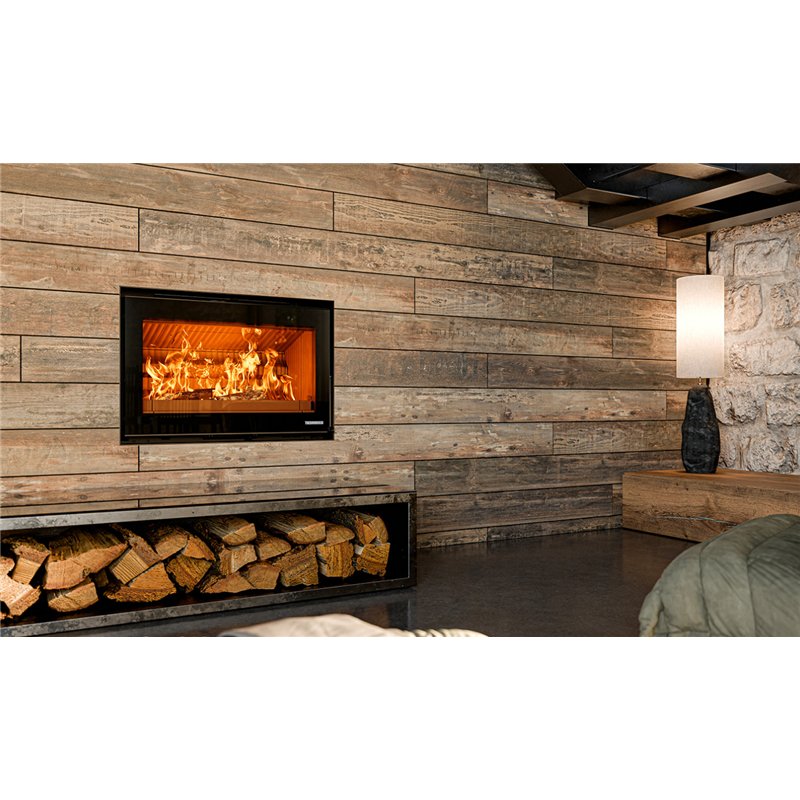

Thermorossi SKYLINE 800 – 10.6 kW, Fullscreen Technology, 5-Star Certified

The Thermorossi SKYLINE 800 wood-burning insert offers a perfect blend of performance, aesthetics, and advanced engineering. With a nominal power output of 10.6 kW and a seasonal efficiency above 85%, it meets the highest 5-star environmental and energy standards.

Thanks to Fullscreen technology, the ceramic glass front with ultra-slim borders (approx. 32×63 cm) provides one of the widest flame views in its class. Its compact height makes it ideal for both restoring old open fireplaces and new fireplace installations.

Key Features:

• Reinforced cast iron combustion chamber suitable for logs over 60 cm long

• Smoke by Pass system: prevents smoke leakage when the door opens and automatically clears unburned residues from the flue

• Easy-clean, removable ash drawer

• Dual-material heat exchanger: stainless steel and cast iron

• Natural convection heating with optional Airbox4 kit (dual thermostatic axial fans) for forced air and ducting to adjacent rooms

• Hidden air controls for primary, secondary, and tertiary air

• Self-cleaning glass, reversible firebox door (left/right), flush handle, and concealed hinges and screws

• External air intake Ø 60 mm

• Flue outlet Ø 130 mm

Main Benefits:

• High seasonal efficiency and energy savings

• Exceptional fire visibility for an immersive flame experience

• Minimalist, compact design

• Easy maintenance and flue access

• Ideal for renovations and modern heating solutions

DIMENSIONI (HXLXP)	540x785x483
PESO (KG)	152
AREA RISCALDABILE (M²)	96
RENDIMENTO MAX	85,5 %
POTENZA AL FOCOLARE (KW)	12,5
POTENZA NOMINALE (KW)	10,6
CANALIZZABILE	SI (CON AIRBOX 4)
CONSUMO ORARIO LEGNA (KG/H)	2,89
ARIA PRIMARIA DA ESTERNO	SI
EMISSIONI CO (MG/M³; 13% DI O2)	160
EMISSIONI POLVERI (MG/M³; 13% DI O2)	9
DIAMETRO USCITA FUMI (MM)	130
TIRAGGIO MINIMO RICHIESTO (PA)	-10
TIRAGGIO MINIMO PER CALCOLI DIMENSIONAMENTO CANNA FUMARIA (PA)	-5









Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
