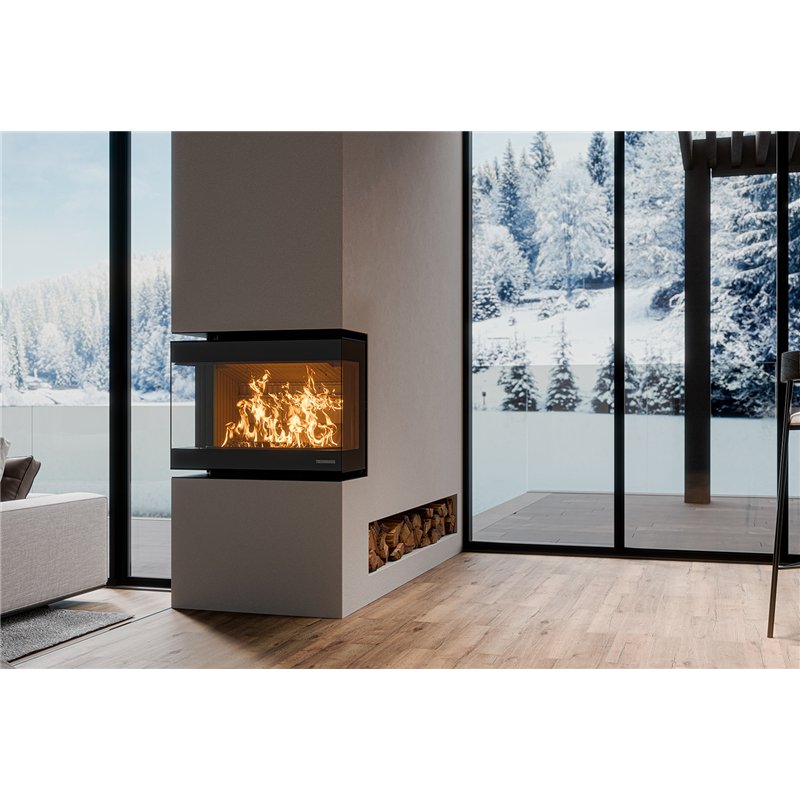

PANORAMA three-sided wood-burning fireplace insert

The Thermorossi PANORAMA fireplace insert is a versatile and high-performance solution for those who want to heat rooms with wood

Design and Materials: PANORAMA is made with a robotic production process, using certified materials and high thicknesses. Its structure complies with the most restrictive European regulations. The combustion chamber and hearth door are made of cast iron and the heat exchanger is made of cast iron and stainless steel to maximize, with the size of the hearth capable of using wood up to 50cm long
Fullscreen technology: Wide view of the fire thanks to the limited thickness of the frames
Three-sided: view of the flame also from the side and opening hinged on the side, reversible
Ductable and ventilatable: with AIRBOX 4 the heat produced by the fireplace can be channeled
5 star certification: 5 star certified wood stoves are able to burn wood more completely and efficiently, minimizing the release of pollutants into the air. The 5 star certification is an important attribute of quality and sustainability for wood stoves, guaranteeing high performance and low environmental impact

PANORAMA is a high quality wood insert, ideal for those who want to renovate an existing fireplace and enjoy comfort and energy savings

DIMENSIONI (HXLXP)	540X690X450
PESO (KG)	126
AREA RISCALDABILE (M²)	81
RENDIMENTO MAX	94,1 %
POTENZA AL FOCOLARE (KW)	6,9 - 10,2
POTENZA NOMINALE (KW)	6,0 - 9,00
CANALIZZABILE	SI (CON AIRBOX 4)
CONSUMO ORARIO LEGNA (KG/H)	0,6 - 2,34
ARIA PRIMARIA DA ESTERNO	SI
EMISSIONI CO (MG/M³; 13% DI O2)	92
EMISSIONI POLVERI (MG/M³; 13% DI O2)	13
DIAMETRO USCITA FUMI (MM)	130
TIRAGGIO MINIMO RICHIESTO (PA)	-10
TIRAGGIO MINIMO PER CALCOLI DIMENSIONAMENTO CANNA FUMARIA (PA)	-5







Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
