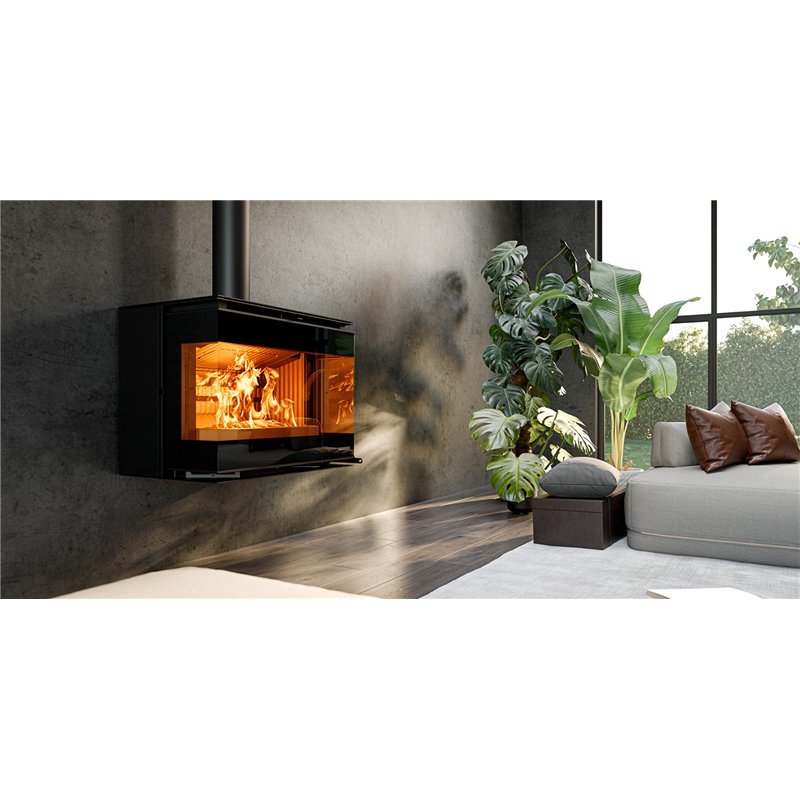

Thermorossi PANORAMA WALL wood-burning wall-mounted stove, 10.5 kW output with 5-star certified efficiency (> 85%). Features Fullscreen technology with panoramic flame view on three sides (32×69 cm front, 32×16 cm side). Durable cast iron firebox for logs up to 50 cm, Smoke by Pass system, removable ash drawer, stainless steel + cast iron heat exchanger. Natural convection or optional Airbox4 forced ventilation. Easy wall installation with no masonry required
1 - Fullscreen technology to maximize the view of the fire (HxL 32x68 cm front - 32x16 cm side) 2 - Secondary and tertiary air, glass self-cleaning system 3 - Stainless steel and cast iron heat exchanger 4 - Fume exhaust Ø 130 mm 5 - Control to direct and partialize ventilation to the 2 upper vents 6 - Possibility of taking combustion air from the outside Ø 60 mm 7 - Ventilation kit with 2 thermostated axial motors 8 - Anti-breakage combustion chamber entirely made of cast iron (HxWxD - 33x56.5x36 cm) 9 - Primary air 10 - Removable ash drawer 11 - Reversible hearth door 12 - Retractable and flush design door opening handle
Buy with confidence
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
The Thermorossi PANORAMA fireplace insert is a versatile and high-performance solution for those who want to heat rooms with wood
Design and Materials: PANORAMA is made with a robotic production process, using certified materials and high thicknesses. Its structure complies with the most restrictive European regulations. The combustion chamber and hearth door are made of cast iron and the heat exchanger is made of cast iron and stainless steel to maximize, with the size of the hearth capable of using wood up to 50cm long Fullscreen technology: Wide view of the fire thanks to the limited thickness of the frames Three-sided: view of the flame also from the side and opening hinged on the side, reversible Ductable and ventilatable: with AIRBOX 4 the heat produced by the fireplace can be channeled 5 star certification: 5 star certified wood stoves are able to burn wood more completely and efficiently, minimizing the release of pollutants into the air. The 5 star certification is an important attribute of quality and sustainability for wood stoves, guaranteeing high performance and low environmental impact
PANORAMA is a high quality wood insert, ideal for those who want to renovate an existing fireplace and enjoy comfort and energy savings
DIMENSIONI (HXLXP)
540X690X450
PESO (KG)
126
AREA RISCALDABILE (M²)
81
RENDIMENTO MAX
94,1 %
POTENZA AL FOCOLARE (KW)
6,9 - 10,2
POTENZA NOMINALE (KW)
6,0 - 9,00
CANALIZZABILE
SI (CON AIRBOX 4)
CONSUMO ORARIO LEGNA (KG/H)
0,6 - 2,34
ARIA PRIMARIA DA ESTERNO
SI
EMISSIONI CO (MG/M³; 13% DI O2)
92
EMISSIONI POLVERI (MG/M³; 13% DI O2)
13
DIAMETRO USCITA FUMI (MM)
130
TIRAGGIO MINIMO RICHIESTO (PA)
-10
TIRAGGIO MINIMO PER CALCOLI DIMENSIONAMENTO CANNA FUMARIA (PA)
-5
Classe Energetica: A+ Certificazione EcoDesign 2022 Livello di prestazione ambientale
