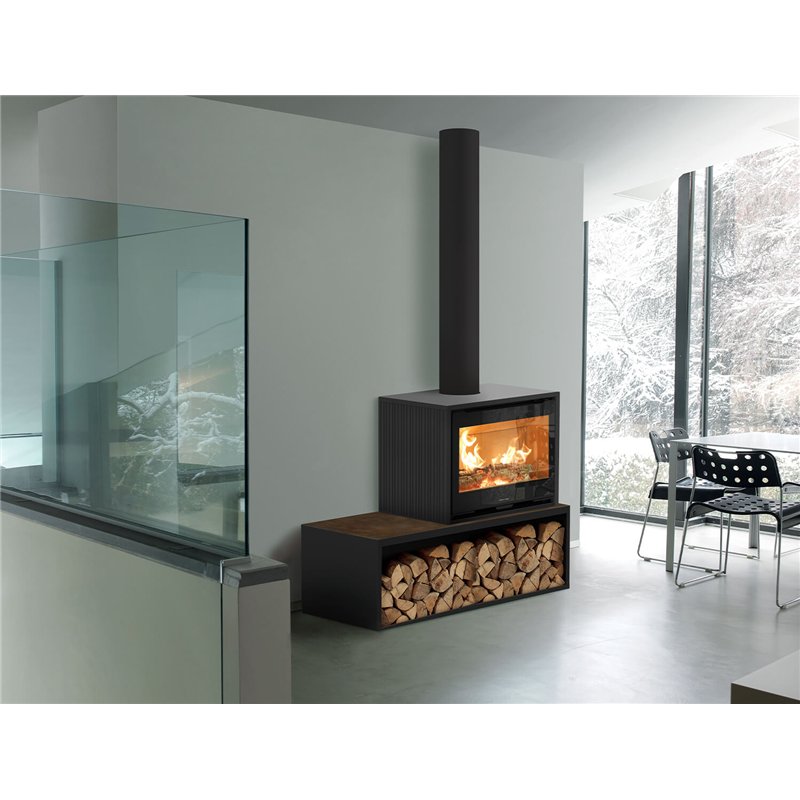

The QUADRO+ 80 5S CERAMIC combines refined aesthetics, modular installation and high performance, making it a complete heating solution for modern interiors.
Stone Grey ceramic finish
The handcrafted Stone Grey ceramic:
adds a refined and contemporary look
enhances the stove as a decorative element
integrates perfectly into premium interiors
The Black Shady glass appears dark when off and becomes transparent during operation.
Modular installation
Available in two configurations:
High performance and low emissions
The 5‑Star version includes a smoke turbulator, which:
Natural convection or forced ventilation
Designed for maximum heat recovery:
Passive‑house ready
Combustion air can be drawn directly from outside, improving efficiency and indoor air quality.
| Nominal heat output | 10.3 kW |
|---|
| Heat input | 11.9 kW |
|---|
| Efficiency min‑max | 84–86% |
|---|
| Seasonal efficiency | 76% |
|---|
| Dimensions (H×W×D) | 62 × 86 × 51 cm |
|---|
| Flue outlet | Ø200 mm |
|---|
| Air inlet | Ø100 mm |
|---|
| Avg. flue gas temperature | 200 °C |
|---|
| Minimum draft | 12 Pa |
|---|
| Energy class | A+ |
|---|
| IEE index | 115 |
|---|
| DM 186 classification | 5 Stars |
|---|
| Conto Termico | Yes |
|---|
| Ecodesign | Yes |
|---|
| OiaT (Switzerland) | Yes |
|---|
| BlmSchV II (Germany) | Yes |
|---|
| Installation | Floor‑standing / Premium bench |
|---|
| Finish | Stone Grey ceramic |
|---|
| Operation | Natural convection / Forced ventilation |
|---|
| Glass | Black Shady |
|---|
| Fuel | Wood |
|---|
