SQUARE / ROUND HOPPER
IN STAINLESS STEEL - SINGLE WALL
VENTIL SYSTEM
VENTIL is the single wall clean air duct system in stainless steel
Made entirely of AISI 304 BA finish stainless steel, it guarantees the highest performance and resistance to high and low temperatures.
Allows the creation of ventilation ducts for clean air both indoors and outdoors, ideal for exhaust air, kitchen hoods and industrial ovens
Thanks to the socket joint, they can be connected with the possibility of 360 ° rotation avoiding alignment problems typical of screwing or combined systems.
The whole VENTIL INOX line is certified according to the European standard EN-1856-2: 2009 and is guaranteed for 2 years

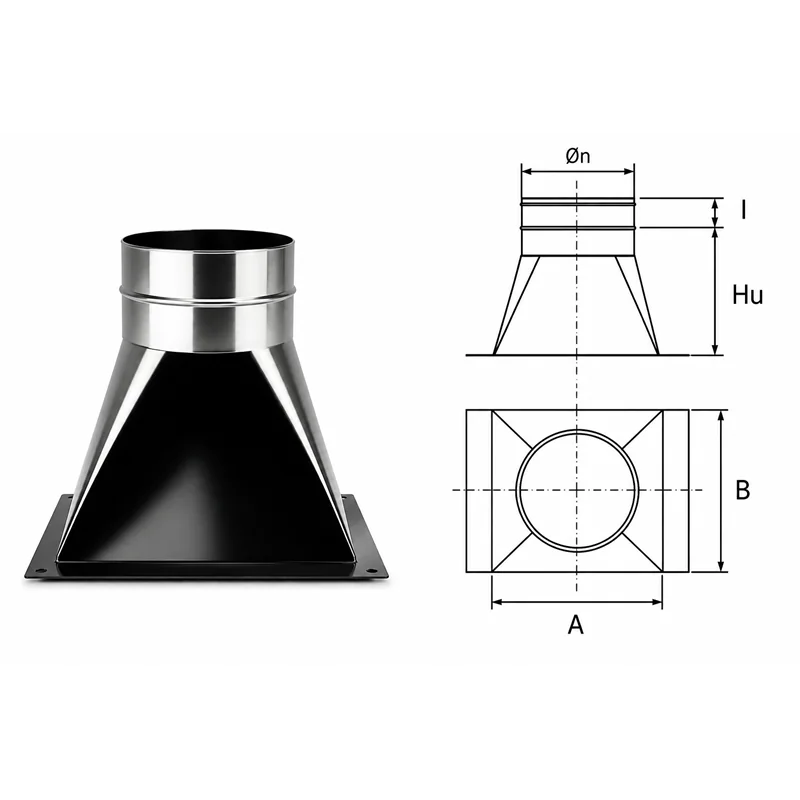

The square / round fitting (hopper) allows the passage from pipes (or attachment) with a square section to the single-walled pipe with a round section
The size of the square drive can vary on customer request with respect to the standard quota; in this case, before placing your order, please contact our technical service
Designation: High temperature evacuation system EN 1856-2: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Corrosion resistance class: Vm (clean air at low and high temperature)
Material type and thickness: L50040 / 050 AISI 304 BA steel
| #515151;Acciaio Inox | Cod. | Øn | A | B | C | D | H* |
|---|
| Acciaio Inox | VTRAM1F | 200 | 200 | 200 | 240 | 240 | 260 |
| Acciaio Inox | VTRAM2F | 250 | 250 | 250 | 270 | 270 | 260 |
| Acciaio Inox | VTRAM3F | 300 | 300 | 300 | 340 | 340 | 260 |
| Acciaio Inox | VTRAM4F | 350 | 350 | 350 | 390 | 390 | 260 |
| Acciaio Inox | VTRAM5F | 400 | 400 | 400 | 440 | 440 | 260 |
| Acciaio Inox | VTRAM6F | 450 | 450 | 450 | 490 | 490 | 260 |
| Acciaio Inox | VTRAM7F | 500 | 500 | 500 | 540 | 540 | 260 |
Material delivery terms: 10 working days
Certification: KIWA
Warranty: 10 Years
