De Marinis VTR inverted cone terminal for VENTIL air ducts

The De Marinis VTR inverted cone terminal is a terminal component of the VENTIL range, designed for circular duct systems used for air distribution, ventilation, extraction and air treatment.

It is manufactured from AISI 304 BA austenitic stainless steel with a bright natural finish and features a distinctive inverted cone design for terminating the duct system.

The VTR can be used with De Marinis VENTIL modular components in both indoor and outdoor installations.

Main features

• Manufacturer: De Marinis
• Range: VENTIL
• Product family: VTR
• Product type: inverted cone terminal
• Material: AISI 304 BA austenitic stainless steel – EN 1.4301
• Finish: natural bright BA finish
• System: single wall
• Minimum VENTIL steel thickness: 0.4 mm
• Installation: indoor or outdoor
• Applications: air treatment, ducted air distribution, extraction, cooling and heating systems
• VTR nominal sizes: Ø80 to Ø500 mm

What the VTR terminal is used for

The VTR is used as the terminal component of a circular VENTIL duct.

Its distinctive inverted cone geometry provides a purpose-designed end component while maintaining visual and dimensional compatibility with the De Marinis modular duct system.

Typical applications include:

• clean air transport;
• ducted air distribution;
• air extraction from rooms and technical areas;
• building ventilation;
• ducted cooling systems;
• ducted heating systems.

AISI 304 BA stainless steel

The VENTIL system is manufactured from AISI 304 BA stainless steel, EN 1.4301.

The BA finish provides a bright and uniform stainless-steel appearance, making the system suitable for visible installations where the appearance of the ductwork is also important.

De Marinis specifies a minimum material thickness of 0.4 mm for the VENTIL range.

VENTIL air duct system

VENTIL is the De Marinis single-wall system developed primarily for air transport and ventilation ductwork.

The range includes straight ducts, elbows, tees, adapters, terminals, grilles and accessories for creating modular air distribution and extraction systems.

Components use a male/female jointing system, with dedicated locking accessories available where additional mechanical stability is required.

Indoor and outdoor installation

The VTR can be used in VENTIL installations located both inside and outside buildings, within the intended application of the system.

Terminal position should be selected according to the air-flow requirements, environmental conditions and overall duct system design.

Note: the VTR belongs to the VENTIL range and is primarily intended for air-handling and ventilation duct systems. Its use should be consistent with the intended application and design of the complete system.

VENTIL system technical data

• Material: AISI 304 BA austenitic stainless steel (EN 1.4301)
• Minimum thickness: 0.4 mm
• Marking: CE according to EN 1856-2:2009
• Installation: indoor or outdoor
• Applications: clean air, ducted air distribution, extraction, cooling and ducted heating

VTR dimensions and De Marinis product codes

The table below lists the official De Marinis dimensions for the VTR inverted cone terminal. All dimensions are expressed in millimetres.

Technical note: Øi values are reproduced from the current De Marinis VTR technical table. They should not be confused with the nominal product size identified by the VTR code, particularly on the larger variants.

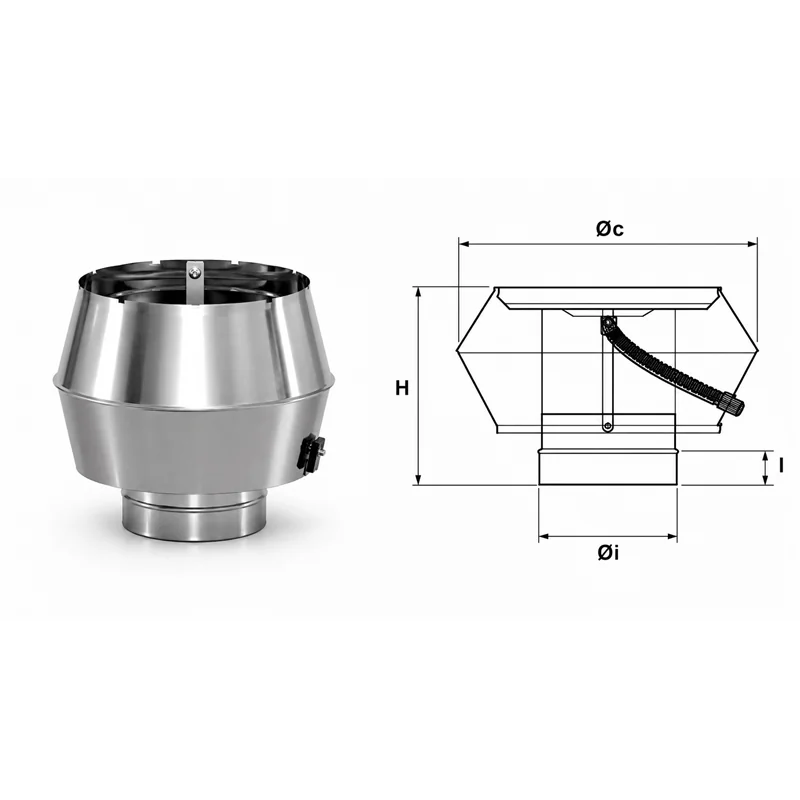

How to read the technical drawing

• Øi: lower diameter shown in the De Marinis technical drawing;
• I: connection depth, 45 mm;
• H: overall terminal height;
• Øe: maximum external diameter of the inverted cone terminal.

Installation

The VTR should be matched to the correct VENTIL duct size and installed according to the design of the air-handling system.

The terminal should remain unobstructed to allow the intended air movement.

For professional ventilation, extraction and HVAC systems, duct sizing, airflow rates and terminal positioning should be determined according to the design requirements of the installation.
