Intermediate plate supporting double wall flue ISO25 De Marinis Copper
  • Intermediate plate supporting double wall flue ISO25 De Marinis Copper
  • Intermediate plate supporting double wall flue ISO25 De Marinis

Intermediate plate supporting double wall flue ISO25 De Marinis Copper

R2PI80
Rating

Intermediate plate supporting double wall flue ISO25 De Marinis Copper

Diametro
€118.60
€94.20 Save €24.40
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description

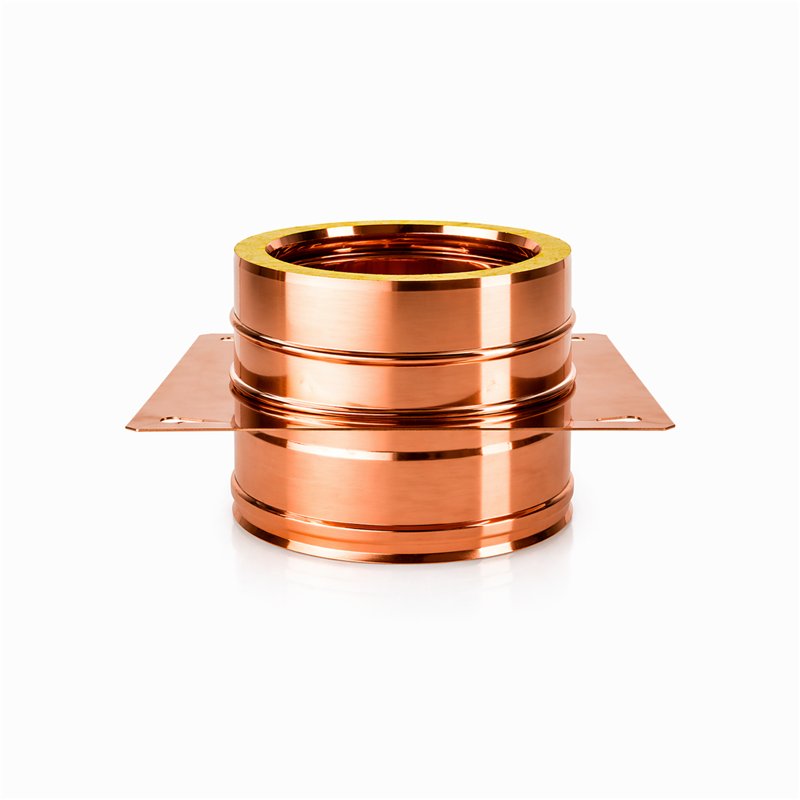

INTERMEDIATE PLATE WITH STRAIGHT ELEMENT
COPPER CHIMNEY - DOUBLE WALL
ISO25 COPPER SYSTEM


Iso25 Rame is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional gas boilers or condensation, etc.).
The whole ISO 25 Copper line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The intermediate plate, resting on a structure or by means of support fins art. DEM.CUCP allows to divide the weight loads in several points ensuring greater stability

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in NATURAL COPPER




  Cod. Øi Øe Hu Hn A B I
Rame Naturale R2PI80 80 130 130 92 220 200 45
Rame Naturale R2PI100 100 150 130 92 240 220 45
Rame Naturale R2PI130 130 180 130 92 270 250 45
Rame Naturale R2PI150 150 200 130 92 290 270 45
Rame Naturale R2PI180 180 230 130 92 320 300 45
Rame Naturale R2PI200 200 250 130 92 330 320 45
Rame Naturale R2PI250 250 300 130 92 390 370 45
Rame Naturale R2PI300 300 350 130 92 440 420 45
Rame Naturale R2PI350 350 400 130 92 490 470 45
Rame Naturale R2PI400 400 450 130 92 540 520 45
Rame Naturale R2PI450 450 500 130 92 590 580 45
Rame Naturale R2PI500 500 550 130 92 640 620 45

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni



Product Details
R2PI80

Specific References

MPN
R2PI
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
