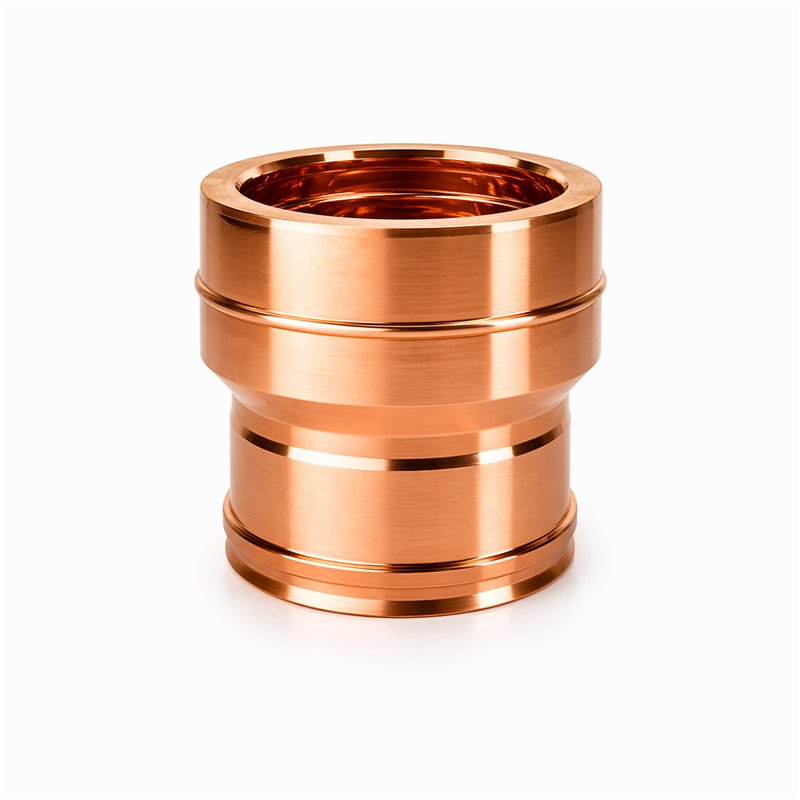

Double wall flue connection ISO25 De Marinis Copper
  • Double wall flue connection ISO25 De Marinis Copper
  • Double wall flue connection ISO25 De Marinis Copper

Double wall flue connection ISO25 De Marinis Copper

R2RCDA

Double wall flue connection ISO25 De Marinis Copper

Diametro minore
Diametro maggiore
€124.20
€111.78 Save 10%
Made to order - no returns or exchanges possible on this product
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description
INCREASE
COPPER CHIMNEY - DOUBLE WALL
ISO25 COPPER SYSTEM

Iso25 Rame is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.It can be combined with any type of generator with maximum operating pressure at 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional or condensing gas boilers, etc.).
The whole ISO 25 Copper line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The increase and a fitting that allows the passage to the larger diameter

The male part has the smallest diameter and the female part has the largest diameter

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in NATURAL COPPER


  Cod. Øi1 Øe1 Øi2 Øe2 Hu I
Rame Naturale R2RCDAØi1-100 XXX XXX + 50 100 150 160 45
Rame Naturale R2RCDAØi1-130 XXX XXX + 50 130 180 160 45
Rame Naturale R2RCDAØi1-150 XXX XXX + 50 150 200 160 45
Rame Naturale R2RCDAØi1-180 XXX XXX + 50 180 230 160 45
Rame Naturale R2RCDAØi1-200 XXX XXX + 50 200 250 160 45
Rame Naturale R2RCDAØi1-250 XXX XXX + 50 250 300 160 45
Rame Naturale R2RCDAØi1-300 XXX XXX + 50 300 350 160 45
Rame Naturale R2RCDAØi1-350 XXX XXX + 50 350 400 160 45
Rame Naturale R2RCDAØi1-400 XXX XXX + 50 400 450 160 45
Rame Naturale R2RCDAØi1-450 XXX XXX + 50 450 500 160 45
Rame Naturale R2RCDAØi1-500 XXX XXX + 50 500 550 160 45


IMPORTANTE ::. Come ordinare :

- scegliere nelle opzioni IL DIAMETRO MAGGIORE (FEMMINA)

- specificare nelle opzioni IL DIAMETRO MINORE (MASCHIO)

Termini consegna materiale : 1 settimana


Certificazione : KIWA

Garanzia: 10 Anni


NON VENDIBILE CON PAGAMENTO CONTRASSEGNO

ARTICOLO SPECIALE REALIZZATO SU MISURA - NON RESTITUIBILE
