Description

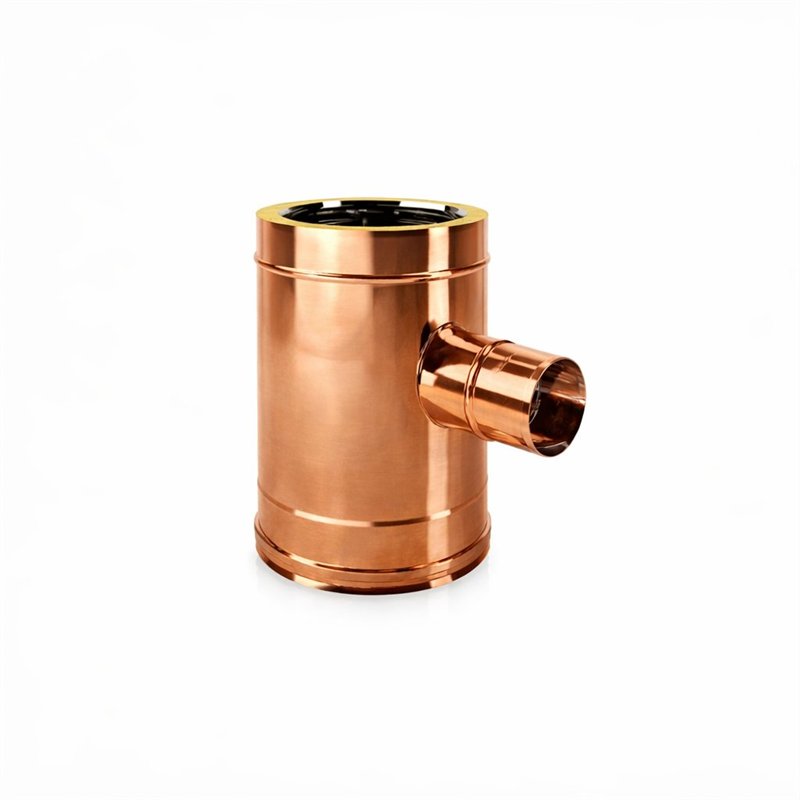

90 ° TEE FITTING SINGLE WALL ENTRY ø80
COPPER FLUE - DOUBLE INSULATED WALL
ISO25 COPPER SYSTEM


Iso25 Rame is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional gas boilers or condensation, etc.).
The whole ISO 25 Copper line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The T fitting allows the connection between the vertical flue pipe and the horizontal smoke channel; the horizontal connection is a SINGLE WALL system  designed for the connection of 80mm mono pipes without the need for an additional connecting element

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in NATURAL COPPER

 Cod.ØiØeHuABI
Rame NaturaleR2TR808013019512011045
Rame NaturaleR2TR10010015019512012045
Rame NaturaleR2TR13013018019512013545
Rame NaturaleR2TR15015020019512014545
Rame NaturaleR2TR18018023019512016045
Rame NaturaleR2TR20020025019512017045
Rame NaturaleR2TR25025030019512019545
Rame NaturaleR2TR30030035019512022045
Rame NaturaleR2TR35035040019512024545


Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni
