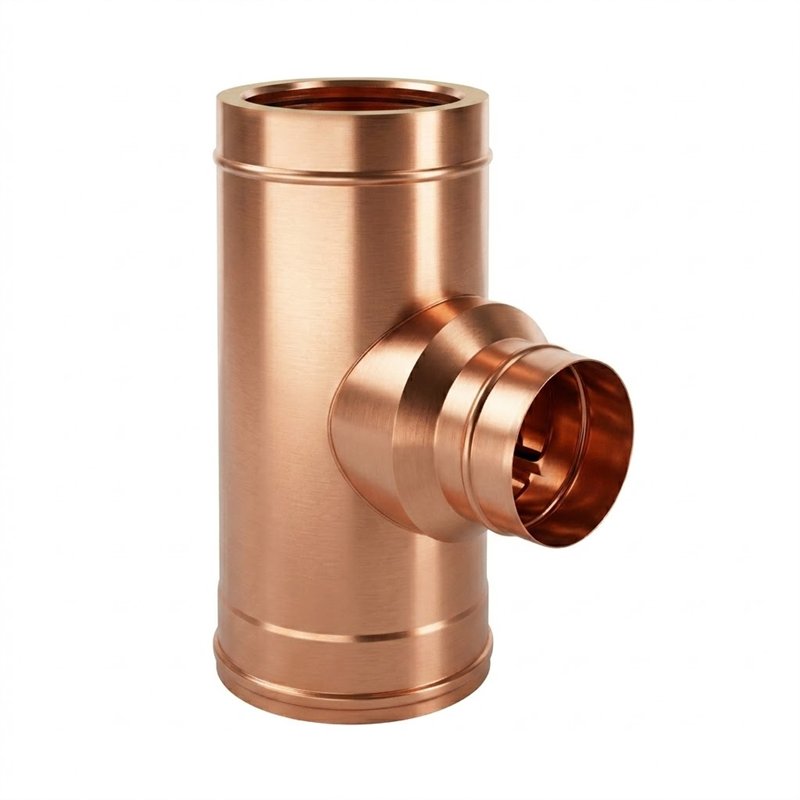

90° T-pipe MONO reduced flue double wall ISO25 De Marinis Copper
  • 90° T-pipe MONO reduced flue double wall ISO25 De Marinis Copper
  • 90° T-pipe MONO reduced flue double wall ISO25 De Marinis Copper

90° T-pipe MONO reduced flue double wall ISO25 De Marinis Copper

R2T9R
Rating

90° T-pipe MONO reduced flue double wall ISO25 De Marinis Copper

Attacco
Diametro
Diametro minore
€285.00
€228.00 Save 20%
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description
90 ° TEE FITTING SINGLE WALL ENTRY
COPPER FLUE - DOUBLE INSULATED WALL
ISO25 COPPER SYSTEM


Iso25 Rame is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional gas boilers or condensation, etc.).
The whole ISO 25 Copper line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The T fitting allows the connection between the vertical flue pipe and the horizontal smoke channel; the horizontal connection is in SINGLE WALL system

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in NATURAL COPPER


  Cod. Øi Øe Ønr Hu A B I
Rame Naturale R2T9100R(Ønr) 100 150 XXX 445 245 180 45
Rame Naturale R2T9130R(Ønr) 130 180 XXX 445 245 195 45
Rame Naturale R2T9150R(Ønr) 150 200 XXX 445 245 205 45
Rame Naturale R2T9180R(Ønr) 180 230 XXX 445 245 220 45
Rame Naturale R2T9200R(Ønr) 200 250 XXX 445 245 230 45
Rame Naturale R2T9250R(Ønr) 250 300 XXX 445 245 255 45
Rame Naturale R2T9300R(Ønr) 300 350 XXX 445 245 280 45
Rame Naturale R2T9350R(Ønr) 350 400 XXX 445 245 305 45

To order: indicate as DIAMETER the measure Ø i and as LOWER DIAMETER the measure Ø nr

Delivery terms: 10 working days

Certification: KIWA

Warranty: 10 Years



Product Details
R2T9R

Specific References

MPN
R2T9R
