Description

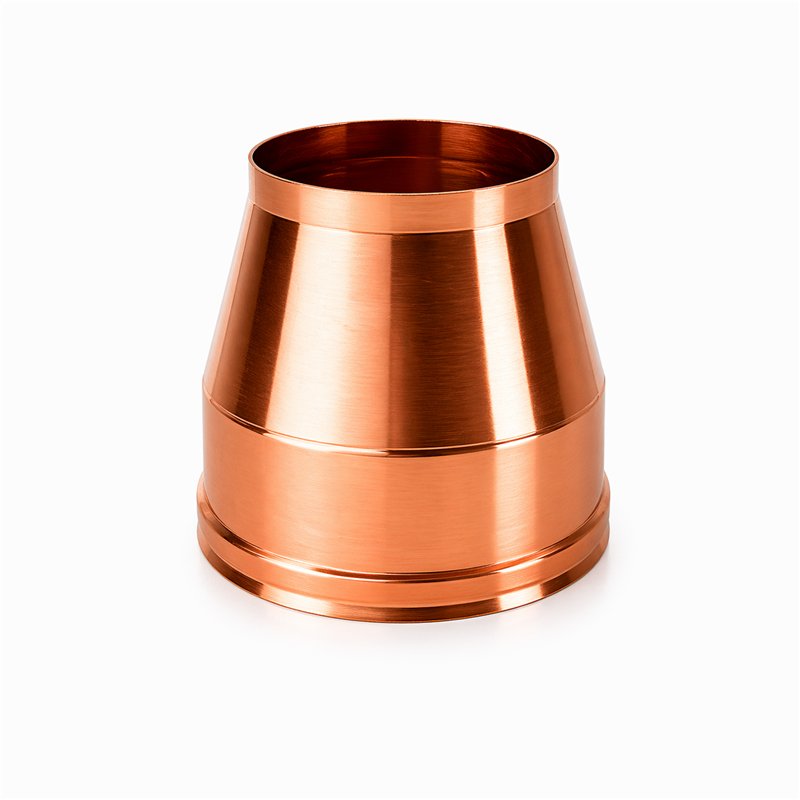

CONICAL TRUNK HAT
COPPER FLUE - DOUBLE INSULATED WALL
ISO25 COPPER SYSTEM


Iso25 Rame is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.

It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional gas boilers or condensation, etc.).
The whole ISO 25 Copper line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The truncated cone cap, without flow resistance, is used in pressurized systems, kitchen hoods or condensing boilers, separating the condensates of the smoke channel from the exhaust of the vertical chimney

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in NATURAL COPPER


  Cod. Øi Øe H
Rame Naturale R2TO80 80 130 170
Rame Naturale R2TO100 100 150 200
Rame Naturale R2TO130 130 180 200
Rame Naturale R2TO150 150 200 200
Rame Naturale R2TO180 180 230 200
Rame Naturale R2TO200 200 250 200
Rame Naturale R2TO250 250 300 200
Rame Naturale R2TO300 300 350 200
Rame Naturale R2TO350 350 400 185
Rame Naturale R2TO400 400 450 185
Rame Naturale R2TO450 450 500 185
Rame Naturale R2TO500 500 550 185

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni
