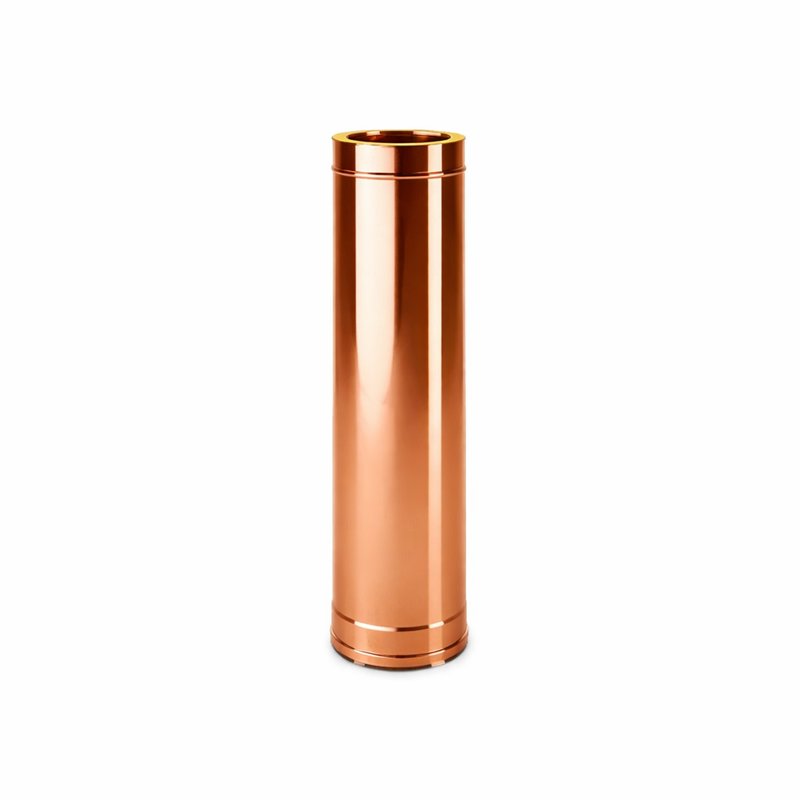

Pipe L 0.25 m double wall flue ISO25 De Marinis Rame
  • Pipe L 0.25 m double wall flue ISO25 De Marinis Rame
  • Pipe L 0.25 m double wall flue ISO25 De Marinis Rame

Pipe L 0.25 m double wall flue ISO25 De Marinis Rame

R2T280
De Marinis

Pipe L 0.25 m double wall flue ISO25 De Marinis Rame

Diametro
€54.49
€43.59Save 20%
Made to order - no returns or exchanges possible on this product
Quantity

help_outlineAsk about product
Pipe L 0.25 m double wall flue ISO25 De Marinis Rame

Pipe L 0.25 m double wall flue ISO25 De Marinis Rame

Pipe L 0.25 m double wall flue ISO25 De Marinis Rame

I accept privacy policy rules

  TRUSTED EXPERIENCE SINCE 1913

Over 100 years of experience in hardware, tools and technical products.

  PHYSICAL STORE & CUSTOMER SUPPORT

We also have a physical store in La Loggia (Turin): real people ready to help before and after your

  ORDERS PREPARED WITH CARE

We prepare every order with care

Description
LINEAR ELEMENT LENGTH CM.25
COPPER CHIMNEY - DOUBLE INSULATED WALL
ISO25 COPPER SYSTEM

Iso25 Rame is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc.).
The whole ISO 25 Copper line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The 250 mm straight element is used to create horizontal or vertical sections

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in NATURAL COPPER


Cod. Øi Øe Hu I
Rame Naturale R2T280 80 130 195 45
Rame Naturale R2T2100 100 150 195 45
Rame Naturale R2T2130 130 180 195 45
Rame Naturale R2T2150 150 200 195 45
Rame Naturale R2T2180 180 230 195 45
Rame Naturale R2T2200 200 250 195 45
Rame Naturale R2T2250 250 300 195 45
Rame Naturale R2T2300 300 350 195 45
Rame Naturale R2T2350 350 400 195 45
Rame Naturale R2T2400 400 450 195 45
Rame Naturale R2T2450 450 500 195 45
Rame Naturale R2T2500 500 550 195 45

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni

Product Details
R2T280

Specific References

MPN
R2T2
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
