90 gradi bend double wall flue ISO25 De Marinis Copper
  • 90 gradi bend double wall flue ISO25 De Marinis Copper
  • 90 gradi bend double wall flue ISO25 De Marinis Copper

90 gradi bend double wall flue ISO25 De Marinis Copper

R2C980

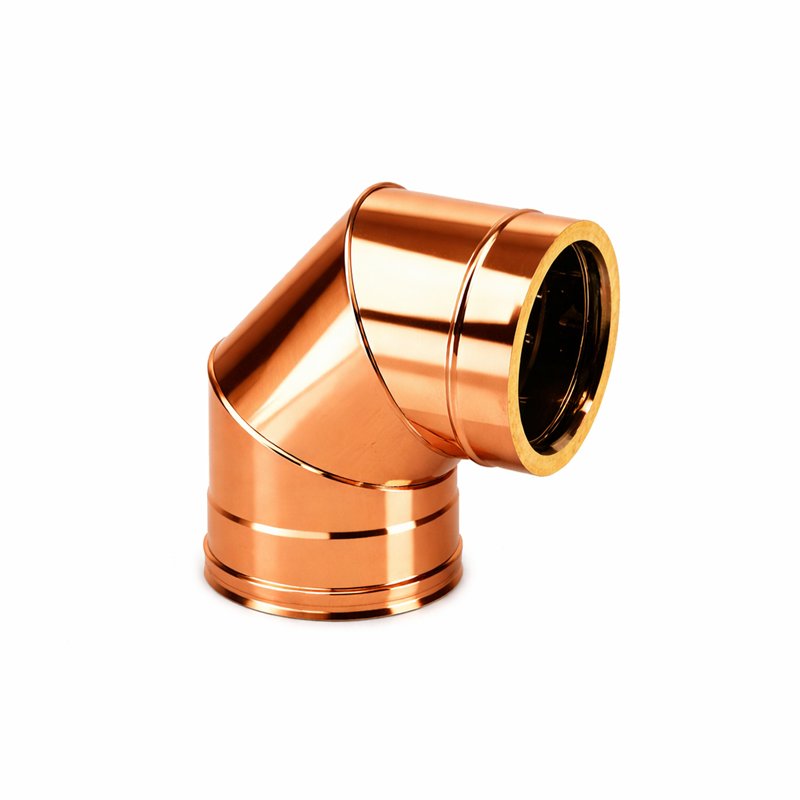

90° bend double wall flue ISO25 De Marinis Copper

Diametro
€126.30
€101.04 Save 20%
Made to order - no returns or exchanges possible on this product
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description

90 ° BEND
COPPER CHIMNEY - DOUBLE INSULATED WALL
ISO25 COPPER SYSTEM


Iso25 Rame is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.It can be combined with any type of generator with maximum operating pressure at 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional or condensing gas boilers, etc.).
The whole ISO 25 Copper line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The 90 ° curve allows you to move both vertically and horizontally

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in NATURAL COPPER



  Cod. Øi Øe A B I
Rame Naturale R2C980 80 130 155 105 45
Rame Naturale R2C9100 100 150 1 63 113 45
Rame Naturale R2C9130 130 180 180 130 45
Rame Naturale R2C9150 150 200 190 140 45
Rame Naturale R2C9180 180 230 205 144 45
Rame Naturale R2C9200 200 250 215 165 45
Rame Naturale R2C9250 250 300 240 190 45
Rame Naturale R2C9300 300 350 278 224 45
Rame Naturale R2C9350 350 400 328 273 45
Rame Naturale R2C9400 400 450 353 298 45
Rame Naturale R2C9450 450 500 364 319 45
Rame Naturale R2C9500 500 550 403 348 45

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni



Product Details
R2C980

Specific References

MPN
R2C9
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
