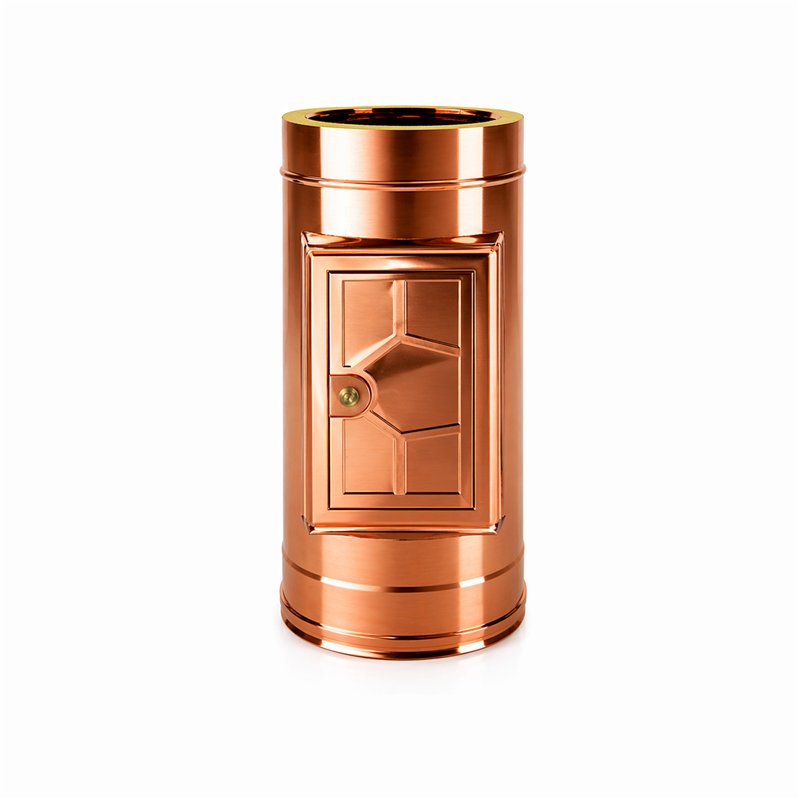

Unburnt collection chamber double wall flue ISO25 De Marinis Copper
  • Unburnt collection chamber double wall flue ISO25 De Marinis Copper
  • Unburnt collection chamber double wall flue ISO25 De Marinis

Unburnt collection chamber double wall flue ISO25 De Marinis Copper

R2IF130
Rating

Unburnt collection chamber double wall flue ISO25 De Marinis Copper

Diametro
€393.90
€315.12 Save 20%
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description
INSPECTION FORM
COPPER CHIMNEY - DOUBLE INSULATED WALL
ISO25 COPPER SYSTEM

Iso25 Rame is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional gas boilers or condensation, etc ..).
The whole ISO 25 Copper line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The unburnt inspection and collection module, usually installed at the base of the flue, allows periodic inspection of the flue.
Can be used with negative pressures below 40Pa and temperatures up to 600 ° C (dry fumes in depression)

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in NATURAL COPPER

  Cod. Øi Øe A B Hu I
Rame Naturale R2IF80 80 130 165 110 445 45
Rame Naturale R2IF100 100 150 165 110 445 45
Rame Naturale R2IF130 130 180 165 110 445 45
Rame Naturale R2IF150 150 200 165 110 445 45
Rame Naturale R2IF180 180 230 165 110 445 45
Rame Naturale R2IF200 200 250 165 110 445 45
Rame Naturale R2IF250 250 300 260 160 445 45
Rame Naturale R2IF300 300 350 260 160 445 45
Rame Naturale R2IF350 350 400 260 160 445 45
Rame Naturale R2IF400 400 450 260 160 445 45
Rame Naturale R2IF450 450 500 260 160 445 45
Rame Naturale R2IF500 500 550 260 160 445 45

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia : 10 Anni



Product Details
R2IF130

Specific References

MPN
R2IF
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
