Double wall flue ring hat ISO25 De Marinis Copper
  • Double wall flue ring hat ISO25 De Marinis Copper
  • Double wall flue ring hat ISO25 De Marinis Copper

Double wall flue ring hat ISO25 De Marinis Copper

R2TE80
De Marinis

Double wall flue ring hat ISO25 De Marinis Copper

Diametro
€229.18
€183.34Save 20%
Made to order - no returns or exchanges possible on this product
Quantity

help_outlineAsk about product
Double wall flue ring hat ISO25 De Marinis Copper

Double wall flue ring hat ISO25 De Marinis Copper

Double wall flue ring hat ISO25 De Marinis Copper

I accept privacy policy rules

  TRUSTED EXPERIENCE SINCE 1913

Over 100 years of experience in hardware, tools and technical products.

  PHYSICAL STORE & CUSTOMER SUPPORT

We also have a physical store in La Loggia (Turin): real people ready to help before and after your

  ORDERS PREPARED WITH CARE

We prepare every order with care

Description
RING TERMINAL
COPPER FLUE - DOUBLE INSULATED WALL
ISO25 COPPER SYSTEM

Iso25 Rame is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.

It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional gas boilers or condensation, etc.).
The whole ISO 25 Copper line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

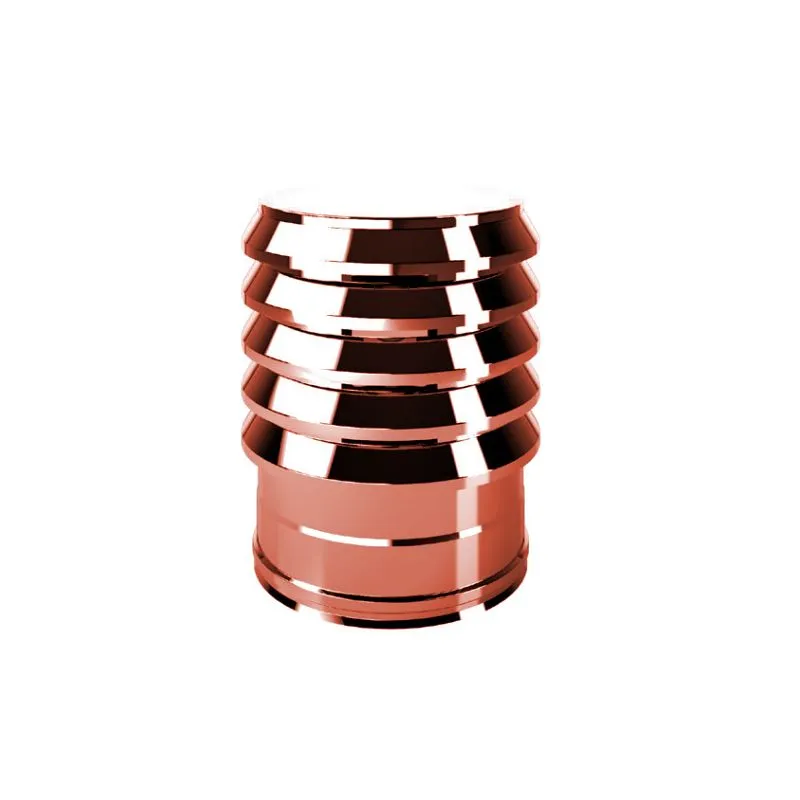

The ring hat is the terminal of the flue with more pleasant aesthetics and functionality comparable to the much more voluminous anti-backflow hat

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in NATURAL COPPER


 Cod.ØiØeHØd
Rame NaturaleR2TE8080130325180
Rame NaturaleR2TE100100150325230
Rame NaturaleR2TE130130180325230
Rame NaturaleR2TE150150200325250
Rame NaturaleR2TE180180230325280
Rame NaturaleR2TE200200250325300
Rame NaturaleR2TE250250300325350

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni
