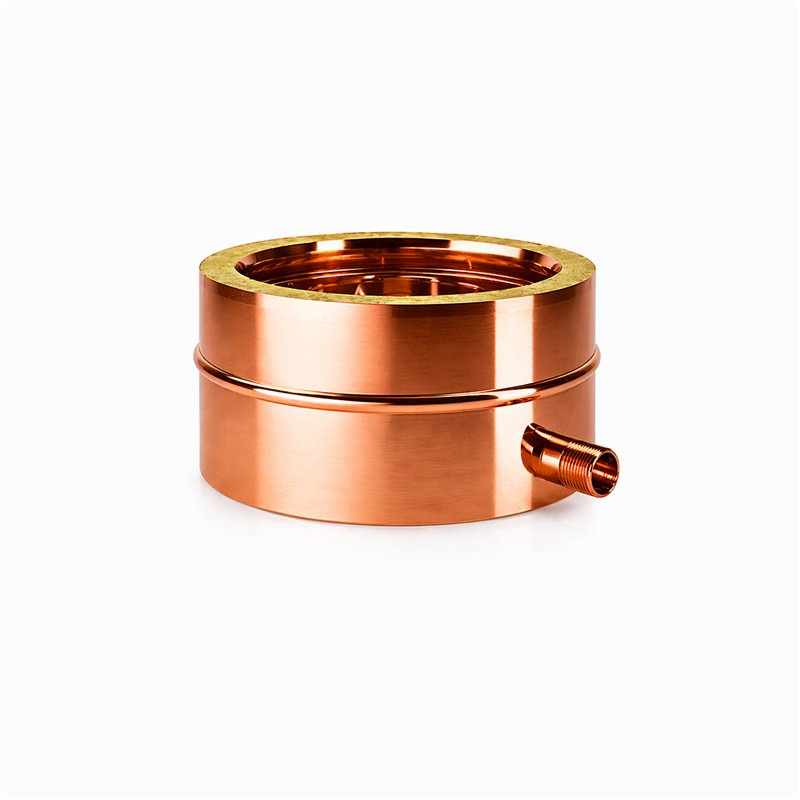

Side condensate drain plug for double wall flue ISO25 De Marinis Copper
  • Side condensate drain plug for double wall flue ISO25 De Marinis Copper
  • Side condensate drain plug for double wall flue ISO25 De

Side condensate drain plug for double wall flue ISO25 De Marinis Copper

R2TL80

Side condensate drain plug for double wall flue ISO25 De Marinis Copper

Diametro
€103.15
€82.52 Save 20%
Made to order - no returns or exchanges possible on this product
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description
SIDE CONDENSATE DRAIN CAP
COPPER CHIMNEY - DOUBLE INSULATED WALL
ISO25 COPPER SYSTEM


Iso25 Rame is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional gas boilers or condensation, etc.).
The whole ISO 25 Copper line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years

The condensate drain plug is used to collect and drain the condensate through a 3/4 "male threaded connection

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in NATURAL COPPER


  Cod. Øi Øe Hu I
Rame Naturale R2TL80 80 130 65 45
Rame Naturale R2TL100 100 150 65 45
Rame Naturale R2TL130 130 180 65 45
Rame Naturale R2TL150 150 200 65 45
Rame Naturale R2TL180 180 230 65 45
Rame Naturale R2TL200 200 250 65 45
Rame Naturale R2TL250 250 300 65 45
Rame Naturale R2TL300 300 350 65 45
Rame Naturale R2TL350 350 400 65 45
Rame Naturale R2TL400 400 450 65 45
Rame Naturale R2TL450 450 500 65 45
Rame Naturale R2TL500 500 550 65 45

Termini consegna materiale : 1 settimana

Garanzia 10 Anni

Certificazione : KIWA

Product Details
R2TL80

Specific References

MPN
R2TL
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
