Side condensate drain plug for double wall flue ISO25 De Marinis Copper
Side condensate drain plug for double wall flue ISO25 De Marinis Copper
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Description

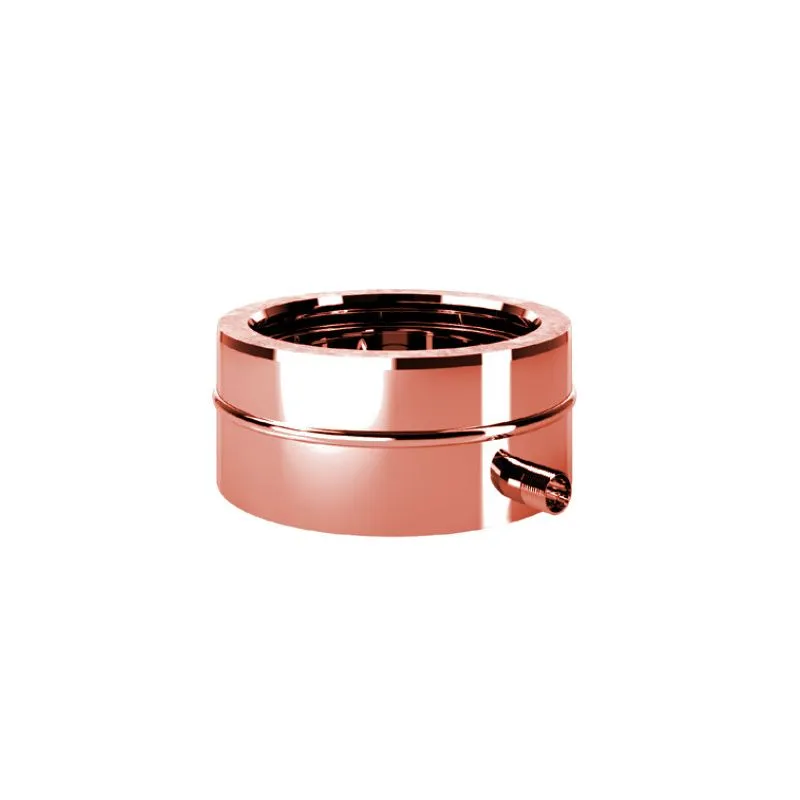

SIDE CONDENSATE DRAIN CAP
COPPER CHIMNEY - DOUBLE INSULATED WALL
ISO25 COPPER SYSTEM
Iso25 Rame is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional gas boilers or condensation, etc.).
The whole ISO 25 Copper line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years
The condensate drain plug is used to collect and drain the condensate through a 3/4 "male threaded connection
Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in NATURAL COPPER
| Cod. | Øi | Øe | Hu | I | |
|---|---|---|---|---|---|
| Rame Naturale | R2TL80 | 80 | 130 | 65 | 45 |
| Rame Naturale | R2TL100 | 100 | 150 | 65 | 45 |
| Rame Naturale | R2TL130 | 130 | 180 | 65 | 45 |
| Rame Naturale | R2TL150 | 150 | 200 | 65 | 45 |
| Rame Naturale | R2TL180 | 180 | 230 | 65 | 45 |
| Rame Naturale | R2TL200 | 200 | 250 | 65 | 45 |
| Rame Naturale | R2TL250 | 250 | 300 | 65 | 45 |
| Rame Naturale | R2TL300 | 300 | 350 | 65 | 45 |
| Rame Naturale | R2TL350 | 350 | 400 | 65 | 45 |
| Rame Naturale | R2TL400 | 400 | 450 | 65 | 45 |
| Rame Naturale | R2TL450 | 450 | 500 | 65 | 45 |
| Rame Naturale | R2TL500 | 500 | 550 | 65 | 45 |
Termini consegna materiale : 1 settimana
Garanzia 10 Anni
Certificazione : KIWA
Product Details
R2TL80
Specific References
- MPN
- R2TL
