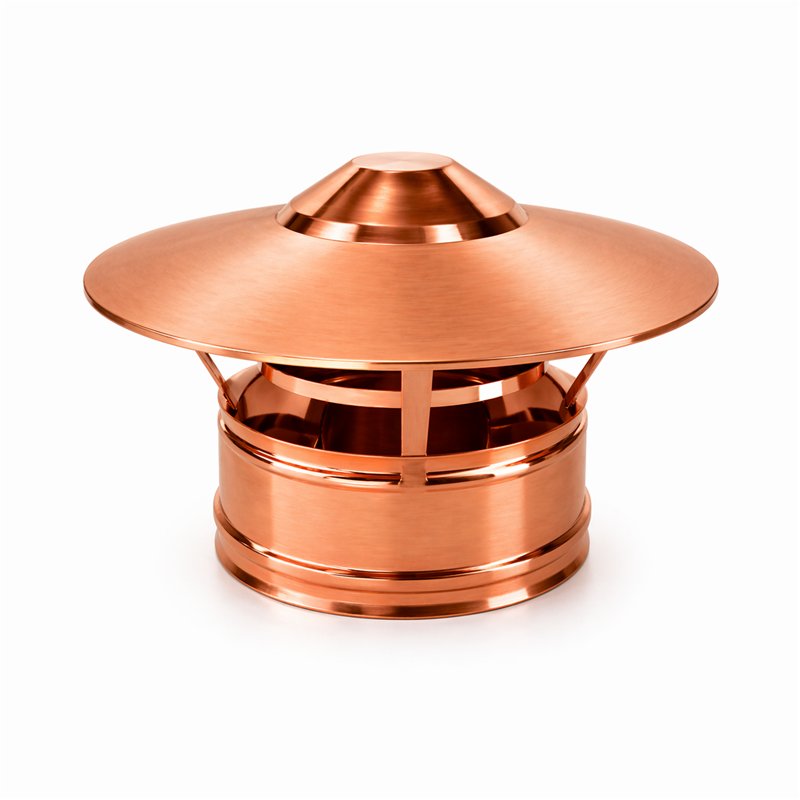

Chinese double wall flue hat ISO25 De Marinis Copper
Chinese double wall flue hat ISO25 De Marinis Copper
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Description
CHINESE HAT
COPPER FLUE - DOUBLE COPPER WALL
ISO25 COPPER SYSTEM
Iso25 Rame is the double wall flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional gas boilers or condensation, etc.).
The whole ISO 25 Copper line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years
The Chinese hat is the end of the chimney and prevents the entry of rain or snow
Low flow resistance, indicated in combination with generators with operating pressures below 40 Pa
Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in NATURAL COPPER
| Cod. | Øi | Øe | H | Ød | |
|---|---|---|---|---|---|
| Rame Naturale | R2CC80 | 80 | 130 | 250 | 250 |
| Rame Naturale | R2CC100 | 100 | 150 | 250 | 250 |
| Rame Naturale | R2CC130 | 130 | 180 | 250 | 300 |
| Rame Naturale | R2CC150 | 150 | 200 | 250 | 300 |
| Rame Naturale | R2CC180 | 180 | 230 | 250 | 400 |
| Rame Naturale | R2CC200 | 200 | 250 | 250 | 400 |
| Rame Naturale | R2CC250 | 250 | 300 | 250 | 500 |
| Rame Naturale | R2CC300 | 300 | 350 | 250 | 600 |
| Rame Naturale | R2CC350 | 350 | 400 | 250 | 700 |
| Rame Naturale | R2CC400 | 400 | 450 | 250 | 800 |
| Rame Naturale | R2CC450 | 450 | 500 | 250 | 800 |
| Rame Naturale | R2CC500 | 500 | 550 | 250 | 900 |
Termini consegna materiale : 1 settimana
Certificazione : KIWA
Garanzia: 10 Anni
Product Details
R2CC80
Specific References
- MPN
- R2CC
